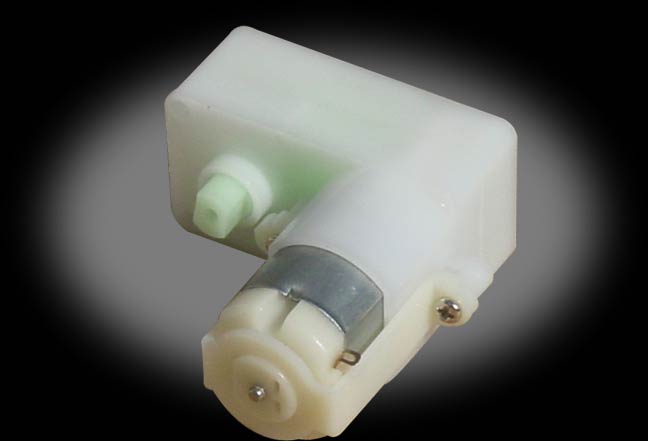

0-GM8 143:1 Offset Shaft Gear Motor <p align="left"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">This 143:1 gear motor spins at 70RPM at 5V, drawing 670mA at stall
generating 43 in*oz torque (free running at 57.6mA).</font></p>
<p><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">With a 7mm double-flat output shaft (avoid using the green double
flat output - it's not meant to take rotational load), and a built-in
clutch and built-in mounting screw holes, you can see why we like these
motors!</font></p>

<table width="100%" border="1" cellpadding="1" cellspacing="0" bordercolor="#666666">

<tr>
<td width="34%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear
Ratio</font></td>
<td width="33%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">143:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
RPM (3V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">40</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
RPM (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">78</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
Current (3V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">50
mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded
Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">52
mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Current (3V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">400
mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Current (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">700
mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Torque (3V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">44.44
oz-in (3200 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall
Torque (6V)</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">76.38
oz-in (5500 g-cm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">47mm (1.85 in)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">48.2mm (1.9 in)</font></td>
</tr> <tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">22.7mm (0.89 in)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft
Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.8mm; 7mm diameter</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">32g (1.13 oz)</font></td>
</tr>
</table>
