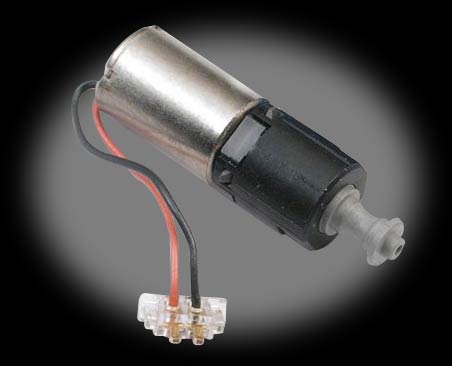

0-GM15 25:1 6mm Planetary Pager Gearmotor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Looking for a tiny gear motor? Now comes the 25:1 Pager Motor, measuring under 6mm (0.235") diameter, with an overall length of 20.1mm (0.79"), which is smaller than many pager motors! The output shaft is grooved for a 1.5mm radius belt, but it's easily modifiable. It weighs only 1.3grams! It's designed for 3V nominal operation, giving 920RPM drawing 100mA. At stall, you get over 0.49in*oz or 35.28gm*cm of torque! We're quite excited about these motors; they're quality made, inexpensive, and tiny!</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25.00:1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">920</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded RPM (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1550</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Unloaded Current (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">200 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">210 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">350 mA </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (3V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.49 in-oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque (6V) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.00 in-oz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20.00 mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.00 mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6.00 mm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3 g </font></td>
</tr>
</table>
