81:1 Geared Pager Motor
The pager gear motor is geared 81:1 spins at 233 RPM and draws 13mA (118mA stall) at 3V giving 2.3in-oz.

$12.00

Motors
Small Geared Motors

Click photo to enlarge.

81:1 Geared Pager Motor
Part# 0-GM10

Please see this product on the new Robot MarketPlace web site. Click here

81:1, 454RPM, 20mA (220mA stall) at 6V gives 3.17 in-oz torque.

These little gear motors measure 20.8 x 29.0 x 25.4mm (0.82 x 1.14 x 1.00") and weigh in at 4.7g (0.17oz). The square output shaft measures 3.56mm (0.14") per side, and the leads measure 5cm (1.95") long.

They're a bit funky in that they're not continuous rotation by default. They have a self-centering spring, so applying DC power will result in a 60 degree swing in one direction. Reversing power swings the output arm 60 degrees the other way. Remove the self-centering spring and clip the stops, and away you go!

Type	Centering Pager Gearmotor
Gear Ratio	81.00:1
No Load RPM at 3V	233
No Load RPM at 6V	454
No Load Current at 3V	13mA
No Load Current at 6V	20mA
Stall Current at 3V	118mA
Stall Current at 6V	220mA
Stall Torque at 3V	2.30 in-oz
Stall Torque at 6V	3.17 in-oz
Length	14.30mm
Width	25.40mm
Height	28.80mm
Weight	5.00g (0.18oz)

Click on a thumbnail to view full size image.

Alt View

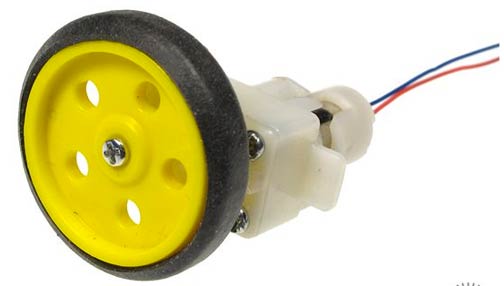

Shown with Wheel
