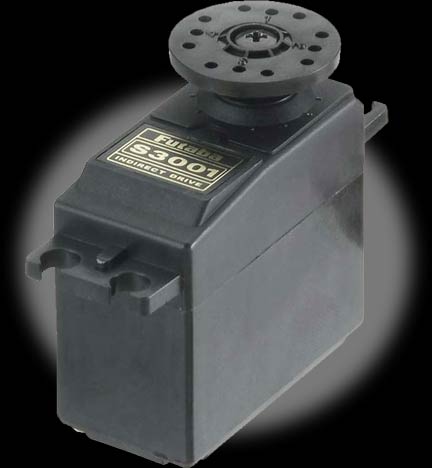

Futaba S3001 Standard Ball Bearing Servo This is a Standard Servo with a Ball Bearing on the output shaft. This has a "J" connector and uses a nylon gears.
Click photo to enlarge.
Futaba S3001 Standard Ball Bearing Servo Part# 0-FUTS3001
Specs Speed: .28 sec/60deg at 4.8V; .22 sec/60deg at 6.0V Torque: 33.3 oz-in at 4.8V; 41.6 oz-in at 6.0V Length: 1.6" (41mm) Width: .8" (20mm) Height: 1.4" (36mm) Weight: 1.6 ounce (45.3 grams) Connector: "J" type with approx. 12" wire
Click on a thumbnail to view full size image.

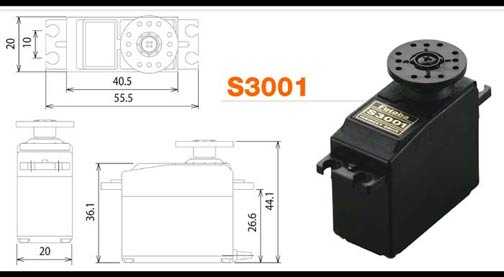

Dimensions
