0-FUTM0810 GY520 Gyro with Heading Hold <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Not since the GY series was introduced in 2000 has there been a heli gyro breakthrough like this. Even with its incredibly small size and light weight, the GY520 gyro delivers premium performance, and it excels with any type of servo, and in any size machine. The GY520 is the gyro of tomorrow, and it's available today from Futaba.
</font>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Outstanding Advantages of the GY520</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
It's a quantum leap ahead of all other heading hold gyros in size, weight and performance.<br>
Outperforms all others in tail holding ability.<br>
Installs easily in any size heli, from the tiniest electric to .91 glow-powered 3D monsters and scale models.<br>
Performs brilliantly with both analog and digital servos.<br>
AVCS and Normal modes.<br>
Affordable price.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Ultra small and light weight gyro contained in one unit-no separate sensor and control unit<br>
Utilizes a high speed advanced PID (Proportional-Integral-Derivative) control algorithm<br>
Latest MEMS (Micro-Electro-Mechanical Systems) allows complete control system on one chip<br>
Delivers superior performance with analog servos and excels with digital servos<br>
F3C and 3D mode selectable, six programmable parameters<br>
Operates at very high speed; 280Hz in the 1520uS mode and 506Hz in the 760uS mode<br>
Programmable through single button and multi-color LED or through a PC using Futaba CIU-2 USB adapter<br>
Registered AVCS (Angular Velocity Control System) architecture achieves unmatched tail holding ability</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specifications</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Size: 0.82 x 0.82 x 0.43&quot; (20.8 x 20.8 x 11mm)<br>
Weight: 0.243 oz (6.9g)<br>
Voltage Range: 3.8 - 6.0V DC<br>
Control System: Advanced PID control<br>
Current Draw: 40mA (without servo)<br>
Sensor: MEMS vibrating structure gyro<br>
Operating Temperature: 14&deg;F - 113&deg;F (-10&deg;C - +45&deg;C)<br>
Sensor Rate Range: +/- 800&deg; sec<br>
Angular Velocity Range: +- 800 deg/sec</font></p>

GY520 Gyro with Heading Hold
This ultra small and light weight gyro utilizes a high speed advanced PID control algorithm to deliver superior performance with analog servos and excels with digital servos.

$199.99
Robot MarketPlace - GY520 Gyro with Heading Hold

RC Gear
    Gyros


Click photo to enlarge.

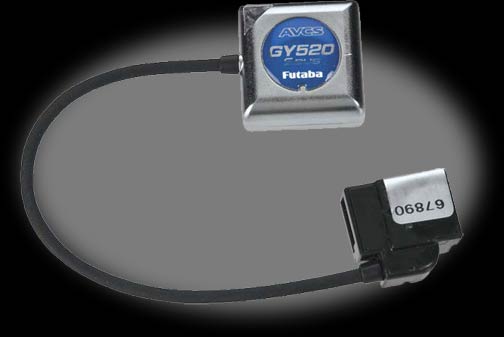

GY520 Gyro with Heading Hold
Part# 0-FUTM0810




Please see this product on the new Robot MarketPlace web site. Click here
