0-FUTM0224 Futaba S9254 Digital Heli Rudder High Speed Servo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Specs<br>
Speed: .06 sec/60deg at 4.8V<br>
Torque: 47 oz-in at 4.8V<br>
Motor Type: Coreless Motor<br />
Gear Type: All Nylon gears<br />
Bearing Type: Dual Ball Bearing<br />
Length: 1.6&quot; (41mm)<br>
Width: .8&quot; (20mm)<br>
Height: 1.4&quot; (37mm)<br>
Weight: 1.7 ounce (49 grams)<br>
Connector: &quot;J&quot; type with approx. 12&quot; wire</font></p>

Futaba S9254 Digital Heli Rudder High Speed Servo
Futaba S9254 Digital Coreless High Torque, High Speed Helicopter Gyro Servo with J Connector.
$119.99
Robot MarketPlace - Futaba S9254 Digital Heli Rudder High Speed Servo
CLOSE X
Loading Image...
RC Gear
    Servos - Standard


Click photo to enlarge.

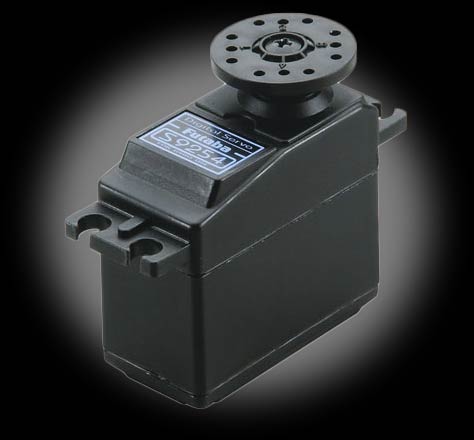

Futaba S9254 Digital Heli Rudder High Speed Servo
Part# 0-FUTM0224



Please see this product on the new Robot MarketPlace web site. Click here






General Product Information
Alternate Photos
Reviews & Comments

Specs
Speed: .06 sec/60deg at 4.8V
Torque: 47 oz-in at 4.8V
Motor Type: Coreless Motor
Gear Type: All Nylon gears
Bearing Type: Dual Ball Bearing

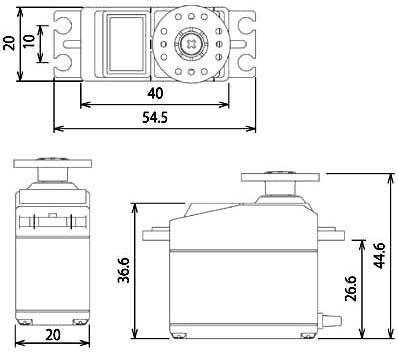

Length: 1.6" (41mm)
Width: .8" (20mm)
Height: 1.4" (37mm)
Weight: 1.7 ounce (49 grams)
Connector: "J" type with approx. 12" wire
