Futaba S3003 Standard Servo The Futaba S3003 Standard Servo is used in cars, boats, or where standard servos are used.

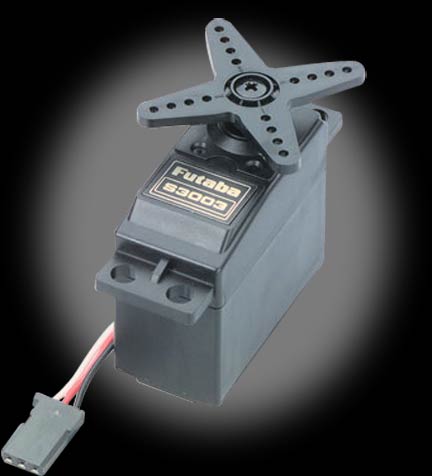

Click photo to enlarge.
Futaba S3003 Standard Servo Part# 0-FUTM0028
Specs Speed: .23sec/60deg at 4.8V; .16sec/60deg at 6V Torque: 44 oz-in at 4.8V; 56.8 oz-in at 6V Length: 1.6in. (41mm) Width: 0.8in. (20mm) Height: 1.4in. (36mm) Weight: 1.3oz (37.2g) Connector: "J" type with approx. 5in. lead
Click on a thumbnail to view full size image.

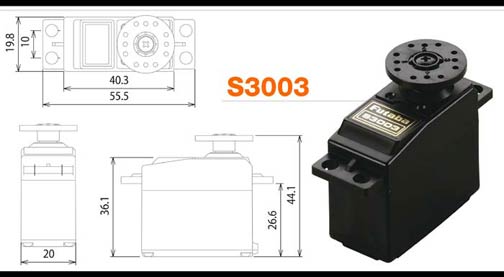

Dimensions
