Futaba quality, FHSS technology and an economical price make the 4YF 2.4GHz FHSS radio an excellent choice for cost-conscious modelers wanting an interference-free spread spectrum system for sport flying. The 4YF has always been a great value, and now weÕve enhanced it with cutting-edge 2.4GHz performance and security!
Features
FHSS (Frequency Hopping Spread Spectrum) eliminates frequency pins and signal interference-pushbutton transmitter/receiver linking with no binding plugs

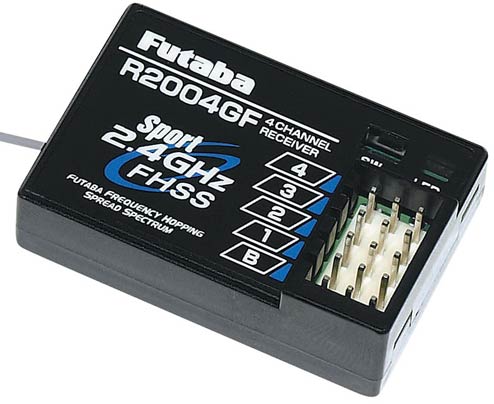

R2004GF receiver has coaxial antenna that can be positioned inside model for optimum reception
Power Down Mode - reduces RF power for 90 seconds, simplifying ground checks for interference
All-channel servo reversing for more installation options
Power and servo reversing switches are located down and out of the way for convenience and to avoid accidental changes
Battery meter features one Green and one Red LED for easy-to-read GO/NO GO status
Elevon mixing
Spring loaded trainer toggle switch for instant "OFF"
Gimbals have knurled tops for a better "feel" on the sticks and to prevent finger slippage
Specs
Transmitter:
Transmitting Frequency: 2.4GHz band
Power Requirement: Four AA cells (not included)
Current Drain: 90mA
Trainer Port: Micro
Receiver:
Power Requirement: 4.8 - 6V (not included)
Current Drain: 30mA at no signal
Size: 1.54 x 1.02 x 0.39" (39 x 26 x 10mm)
Weight: 0.49oz (14g)
Included in the Box
2.4GHz FHSS Futaba 4YF 4-Channel Transmitter
R2004GF Receiver
On/Off Switch Harness and Charge Cord
Neck Strap
Instruction Manual
