FingerTech Viper Basic Robot Platform
The Viper basic platform kit is a perfect base to add your own circuitry for sumo robots, line followers, maze solvers, or any of your own ideas!
$189.99
0-FT-VIPER FingerTech Viper Basic Robot Platform <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The custom-formed aluminum chassis has plenty of strength and space for additional components and upgrades. 50:1 ratio Spark gearmotors with 2" Lite Flite wheels provide both speed and pushing power, and a sporty vacuum-formed lid keeps all the guts inside during a match.</font></p> <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Viper kit is fully intended to be sawed, drilled, modified, and upgraded. Its base weight is only 333grams (11.75oz) leaving 121grams (4.25oz) for additional parts if entering the Antweight (1lb) weight class, or 546g free if entering the Kilobot (1kg) weight class. (Weighed with 2x 9V batteries) </font></p> <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Dimensions:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br /> Width: 17.1cm (6.75")<br /> Length: 13.7cm (5.375")<br /> Height (measured at rear when on wheels): 5.7cm (2.25")<br /> Weight: 333grams (11.75oz) (weight is with 2x 9V batteries)<br /> Large area of 16.8x6.0cm (6.625x2.375") to mount extra components, with a 3.2cm (1.25") tall block in the center to fit circuitry or servos</font></p> <table width="100%" border="1" cellspacing="0" cellpadding="0"> <tr> <td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Kits Includes </font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Chassis</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14gauge (0.064") thick, 5052 alloy Aluminum punched and formed baseplate (pic). Has mounting holes for motors and lid</font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motors</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2x <a href="0-FT-SPARK16-50.html" target="_top">50:1 Spark Gearmotors</a></font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wheels</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2x <a href="0-DAV5520.html" target="_top">2in. Lite Flites </a></font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Hubs</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2x <a href="0-FT-LITE-HUBS.html" target="_top">Lite Hubs </a></font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Switch </font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">A clever switch that you unplug to power on, using a 3.5mm mono headphone jack. Plug can be used for charging rechargeable batteries if you plan to upgrade</font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Lid</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Custom 0.030" thick vacuum-formed polycarbonate lid keeps all the wires and components inside the robot. (Not recommended to be the only armor against weaponed opponents.)</font></td> </tr> <tr> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Screws</font></td> <td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Four 2-56x0.1875" screws for mounting the motors. Eight 4-40x0.25" screws for fastening lid. Four 4-40 setscrews for Lite Hubs.<br /> Two hex wrenches included for screws and setscrews.</font></td> </tr> </table>

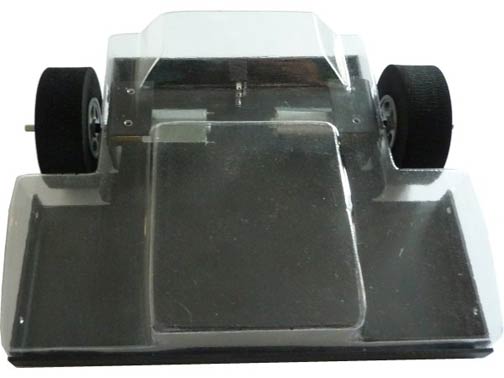

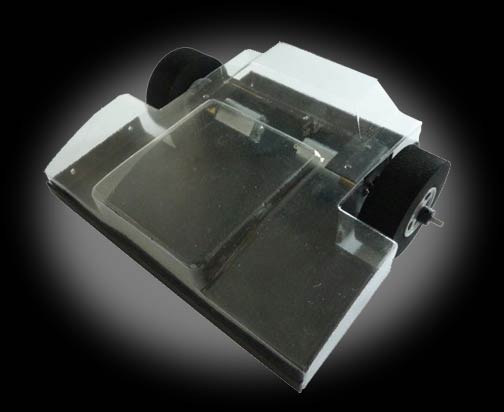

The custom-formed aluminum chassis has plenty of strength and space for additional components and upgrades. 50:1 ratio Spark gearmotors with 2" Lite Flite wheels provide both speed and pushing power, and a sporty vacuum-formed lid keeps all the guts inside during a match.
The Viper kit is fully intended to be sawed, drilled, modified, and upgraded. Its base weight is only 333grams (11.75oz) leaving 121grams (4.25oz) for additional parts if entering the Antweight (1lb) weight class, or 546g free if entering the Kilobot (1kg) weight class. (Weighed with 2x 9V batteries)
Dimensions:
Width: 17.1cm (6.75")
Length: 13.7cm (5.375")
Height (measured at rear when on wheels): 5.7cm (2.25")
Weight: 333grams (11.75oz) (weight is with 2x 9V batteries)
Large area of 16.8x6.0cm (6.625x2.375") to mount extra components, with a 3.2cm (1.25") tall block in the center to fit circuitry or servos
Kits Includes
Chassis
14gauge (0.064") thick, 5052 alloy Aluminum punched and formed baseplate (pic). Has mounting holes for motors and lid

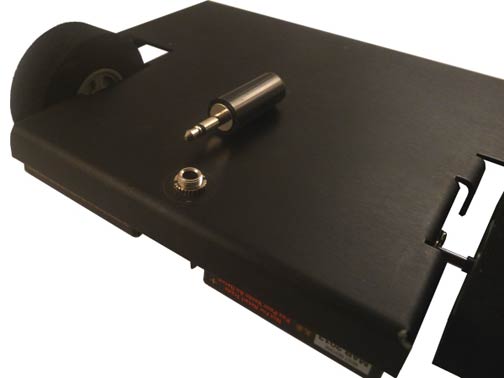

A clever switch that you unplug to power on, using a 3.5mm mono headphone jack. Plug can be used for charging rechargeable batteries if you plan to upgrade
Lid

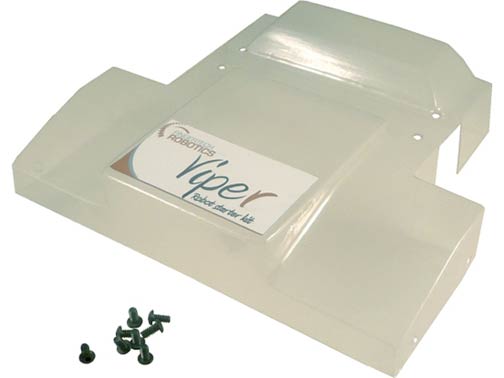

Custom 0.030" thick vacuum-formed polycarbonate lid keeps all the wires and components inside the robot. (Not recommended to be the only armor against weaponed opponents.)
Screws
Four 2-56x0.1875" screws for mounting the motors. Eight 4-40x0.25" screws for fastening lid. Four 4-40 setscrews for Lite Hubs.
Two hex wrenches included for screws and setscrews.
