0-FT-TINYESC FingerTech tinyESC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap">
<div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/3dBe3sNGX64?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="FingerTech TinyESCs - The Robot MarketPlace"><img src="videos/data/thumbnails/tinyesc.jpg" alt="FingerTech TinyESCs - The Robot MarketPlace" /></a></div>
</div>
These are the smallest and lightest motor controllers currently manufactured for RC hobby robotics. They take up very little space but can handle more than enough current for small robots.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Features<br>
Ultra-compact and lightweight.<br>
Uses 5V from receiver, no internal BEC.<br>
Undervoltage, overcurrent/temp protection.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6V-36V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Receiver Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.7V-5.5V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.0A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.8A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Circuit Board Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.27 x 1.27 x 0.58 cm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Outer Heatsink Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.35 x 1.91 x 0.64 cm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight with Wires </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4g </font></td>
</tr>
</table>

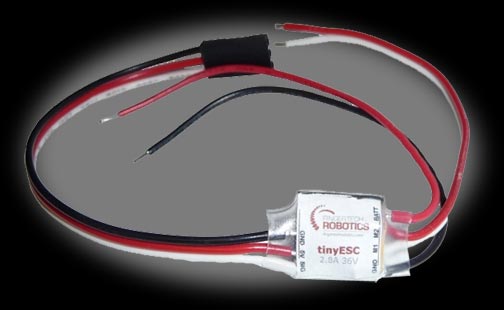

FingerTech tinyESC

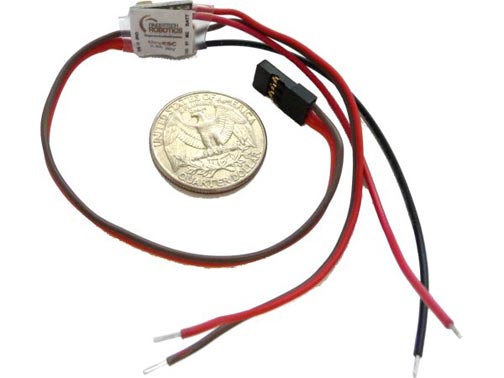

Ultra-compact and lightweight, the tinyESC takes up very little space on your bot.

$32.58
Robot MarketPlace - FingerTech tinyESC
CLOSE X
Loading Image...

Electronics
    Small Single-Channel Speed Controllers


Click photo to enlarge.

FingerTech tinyESC
Part# 0-FT-TINYESC



(average customer rating)

$32.58
This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

FingerTech TinyESCs - The Robot MarketPlace
These are the smallest and lightest motor controllers currently manufactured for RC hobby robotics. They take up very little space but can handle more than enough current for small robots.

Features
Ultra-compact and lightweight.
Uses 5V from receiver, no internal BEC.
Undervoltage, overcurrent/temp protection.

Specs
Battery Voltage 6V-36V
Receiver Voltage 2.7V-5.5V
Continuous Current 2.0A
Max Current 2.8A
Circuit Board Size 1.27 x 1.27 x 0.58 cm
Outer Heatsink Size 1.35 x 1.91 x 0.64 cm
Weight with Wires 4g
