0-FT-TINYESC-BEC FingerTech tinyESC with BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><div id="wrap">
<div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/v/3dBe3sNGX64?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="FingerTech TinyESCs - The Robot MarketPlace"><img src="videos/data/thumbnails/tinyesc.jpg" alt="FingerTech TinyESCs - The Robot MarketPlace" /></a></div>
</div>These are the smallest and lightest motor controllers currently manufactured for RC hobby robotics. They take up very little space but can handle more than enough current for small robots.<br>
With BEC indicates an included Battery Eliminator Circuit. If there is no 5V supply present on the robot, use one of these to power the radio receiver from the main battery. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Ultra-compact and lightweight.<br>
Internal BEC provides 5V to receiver. Use this ESC if you do not have another speed controller or voltage regulator providing 5V power to your receiver.<br>
Undervoltage, overcurrent/temp protection.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7V-36V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Eliminator Output Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.0A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.8A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Output Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100 mA</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Circuit Board Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.27 x 1.27 x 0.58 cm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Outer Heatsink Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.35 x 1.91 x 0.64 cm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight with Wires </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4g </font></td>
</tr>
</table>

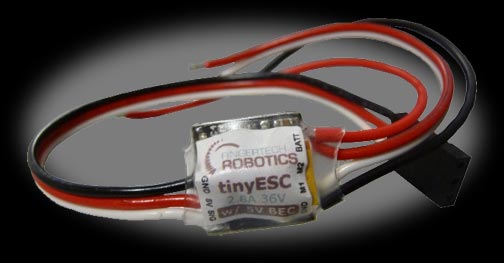

FingerTech tinyESC with BEC
Ultra-compact and lightweight, the tinyESC takes up very little space on your bot.

$37.11
Robot MarketPlace - FingerTech tinyESC with BEC
CLOSE X
Loading Image...

Electronics
    Small Single-Channel Speed Controllers


Click photo to enlarge.

FingerTech tinyESC with BEC
Part# 0-FT-TINYESC-BEC


No reviews yet.

$37.11
This Product Has Been Discontinued
Stock Status: Removed






General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

FingerTech TinyESCs - The Robot MarketPlace
These are the smallest and lightest motor controllers currently manufactured for RC hobby robotics. They take up very little space but can handle more than enough current for small robots.
With BEC indicates an included Battery Eliminator Circuit. If there is no 5V supply present on the robot, use one of these to power the radio receiver from the main battery.

Features
Ultra-compact and lightweight.
Internal BEC provides 5V to receiver. Use this ESC if you do not have another speed controller or voltage regulator providing 5V power to your receiver.
Undervoltage, overcurrent/temp protection.

Specs
Battery Voltage 7V-36V
Battery Eliminator Output Voltage 5V
Continuous Current 2.0A
Max Current 2.8A
BEC Output Current 100 mA
Circuit Board Size 1.27 x 1.27 x 0.58 cm
Outer Heatsink Size 1.35 x 1.91 x 0.64 cm
Weight with Wires 4g
