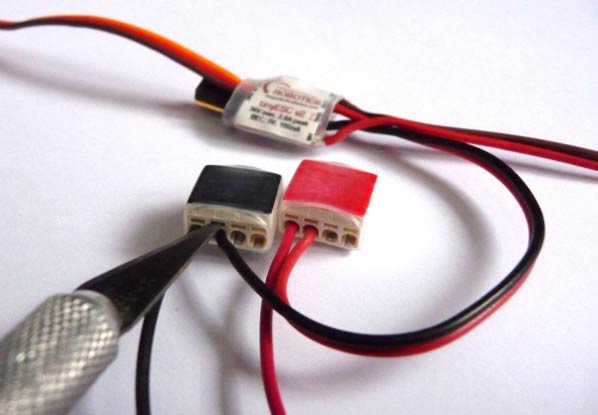

When you don't want to solder every wire connection, these push-wire terminal blocks are a convenient solution. Easily connect and disconnect up to four 18ga wires to a common connection point. Includes one red and one black terminal block for positive and negative (ground) connections.
Specs

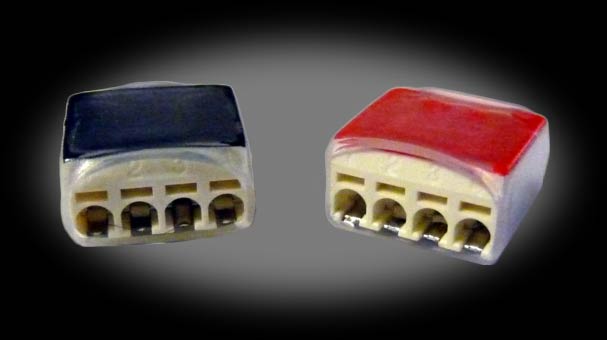

Includes one red and one black push-wire 4-terminal block.
Material: Glass-filled nylon, 0.20m Beryllium Copper retainer tabs
Dimensions (each): 11.0 x 9.8 x 6.6mm (0.43 x 0.39 x 0.26in)
Weight (each): 0.75grams (0.026oz)
Accepts wire size: 18-24gauge solid or stranded wire
Continuous Current: 6A

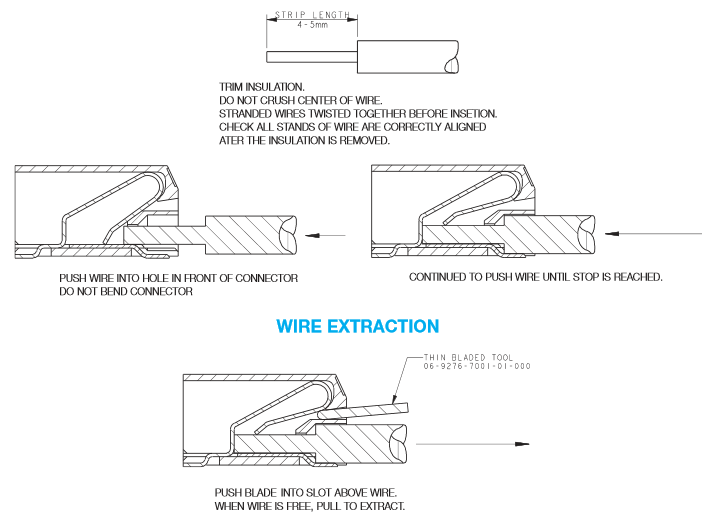

Installation
- Strip insulation back 4-5mm (0.15-0.2in).
- Twist stranded wires before insertion.
- Push wire into one of four holes until stop is reached.
- To release a wire from the terminal block, push a flat tool into the slot above the wire to free it.
$6.09
