0-FB004 FiveBOT FB004 Two-Wheeled Robotic Platform <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/Uftjq1CmSns?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="FiveBOT FB004 Demo - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/FB004_vid3.jpg" alt="FiveBOT FB004 Demo - The Robot MarketPlace" /></a></div>
</div>

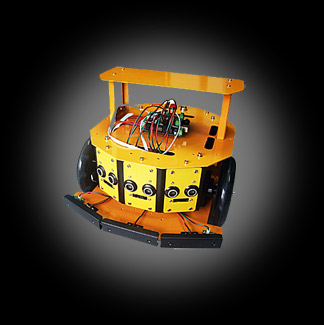

The FiveBot FB004 Two-Wheeled Robotic Platform is designed for use by researchers and students. This versatile Arduino-based and Mini-ITX compatible platform is ideal for use as a remote robot to monitor a facility or transport materials.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
The FB004 Two-Wheeled Robotic Platform's two wheels are driven by two differentially steered DC motors, allowing rotation and movement in any direction. Three infrared rangefinders allow the FB004 to track and chase objects, follow walls, and avoid obstacles.
</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">
The FB004 Platform has maximum load capacity of 10kg, so you can add your own stuff on top like a camera or robotic arm. <br>
<br>
NOTE: Assembly is required. You'll need a Phillips head screwdriver. </font></p>
<table width="570" border="0">
<tr>
<td width="352"><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Chassis Details:</strong><br>
Length: 357mm<br>
Width: 313mm<br>
Height: 267mm<br>
Net Weight: 4.22kg <br>
Ground Clearance: 39mm<br>
Wheel Diameter: 143mm<br>
Wheel Thickness: 28mm<br>
Wheel Material: Polyurethane <br>
Wheelbase: 160mm<br>
Chassis Material: Aluminum<br>
Color: Yellow<br>
Speed: 0.8 m/s<br>
Climbing Capacity: 20 degree incline<br>
Load Capacity: 10kg<br>
</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Controller: Arduino ATMega328P, IO Expansion Board <br>
Mini-ITX Compatible: Yes <br>
</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
<strong>Motor Details:</strong><br>
Motor Type: Faulhaber 12V DC Coreless Motor<br>
Gearbox Ratio: 64:1<br>
Power: 17W<br>
Speed: 120 RPM<br>
Diameter: 30mm<br>
Length: 85mm<br>
Shaft Diameter: 6mm<br>
Shaft Length: 35mm<br>
No-Load Current: 75 mA<br>
Load Current: 1.4A<br>
Encoder Type: Optical<br>
Encoder Phase: AB<br>
Encoder Resolution: 12CPR</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Battery Details:</strong></font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Battery: 12V NiMH<br>
Charger: 12V Wall Charger<br>
Charge Time: 2 hours<br>
Running Time: 0.5 hours</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
<br>
</font></p>
