0-FB002 FiveBOT FB002 Mecanum 4WD Robotic Platform
<div id="wrap"><div id="video1">
<a rel="#voverlay" href="http://www.youtube.com/embed/XNeUyL1b_e0?autoplay=1&rel=0&amp;color1=0x234900&amp;color2=0x4e9e00" title="FiveBOT FB002 Demo - The Robot MarketPlace"><img src="http://www.robotcombat.com/products/videos/data/thumbnails/0-FB002_vid1.jpg" alt="FiveBOT FB002 Demo - The Robot MarketPlace" /></a></div>
</div>


<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The FiveBOT FB002 4WD Mecanum Wheel Robotic Platform is designed for robotic research and development. The FB002 can be used as a transporter, a remote monitoring device and
a Navigation/Patrol robot. The Mecanum Wheels allow it to move in any direction. </font></p>
<p>
<font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The FB002 Platform has a maximum load capacity of 20kg, so you can add your own stuff on top like a camera, robotic arm, or small child. <br>
<br>
NOTE: Assembly is required. You'll need a Phillips head screwdriver. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Chassis Details:</strong><br>
Length: 380mm<br>
Width: 215mm<br>
Height: 73mm<br>
Net Weight: 4.38kg <br>
Wheel Diameter: 94mm<br>
Wheel Thickness: 51mm<br>
Wheel Material: Aluminum with Rubber Rollers <br>
Chassis Material: Aluminum<br>
Color: Yellow<br>
Speed: 0.6 m/s<br>
Climbing Capacity: 30 degree incline<br>
Load Capacity: 20kg<br>
</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Controller: Arduino ATMega328P, IO Expansion Board <br>
Mini-ITX Compatible: No <br>
</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
<strong>Motor Details:</strong><br>
Motor Type: Faulhaber 12V DC Coreless Motor<br>
Gearbox Ratio: 64:1<br>
Power: 17W<br>
Speed: 120 RPM<br>
Diameter: 30mm<br>
Length: 85mm<br>
Shaft Diameter: 6mm<br>
Shaft Length: 35mm<br>
No-Load Current: 75 mA<br>
Load Current: 1.4A<br>
Encoder Type: Optical<br>
Encoder Phase: AB<br>
Encoder Resolution: 12CPR</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Battery Details:</strong></font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Battery: 12V NiMH<br>
Charger: 12V Wall Charger<br>
Charge Time: 2 hours<br>
Running Time: 0.5 hours</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
</font></p>
<p>&nbsp;</p>

FiveBOT FB002 Mecanum 4WD Robotic Platform
The FiveBOT FB002 4WD Mecanum Wheel Robotic Platform is designed for robotic research and development. The FB002 can be used as a transporter, a remote monitoring device and a Navigation/Patrol robot. The Mecanum Wheels allow it to move in any direction.

$2299.99
Robot MarketPlace - FiveBOT FB002 Mecanum 4WD Robotic Platform

Robot Kits
    FiveBOT Platforms


Click photo to enlarge.

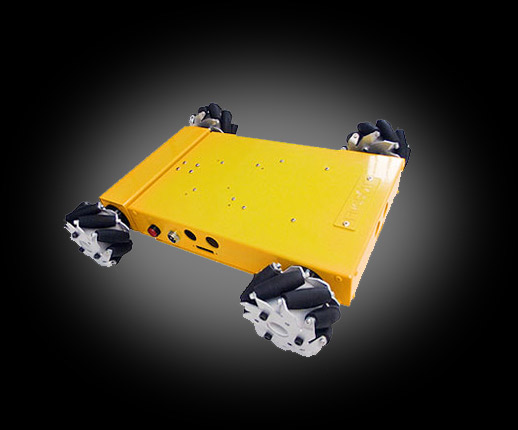

FiveBOT FB002 Mecanum 4WD Robotic Platform
Part# 0-FB002
