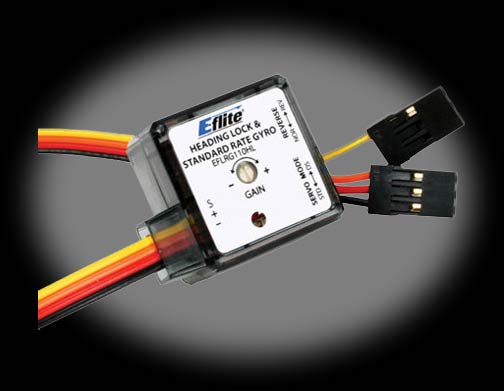

At just 11.0 grams, the full-featured G110 Micro Heading Lock Gyro gives micro and mini helicopter pilots all the benefits of locked-in tail control plus the ability to optimize its performance for use with digital or analog servos.
Features
Heading Lock or Standard Rate modes
User-selectable modes that optimize performance for analog or digital servos
On-gyro single gain setting adjustment capability
Optional dual remote gain setting and mode adjustment capability
Built-in drift cancellation and temperature compensation circuitry
Llightweight--only 11.0 g (.39 oz), including leads and connectors
Micro size--just 16 x 25 x 25mm (0.6 x 1.0 x 1.0 in)
Specs |
Type |
Micro |
Sensor Type |
Piezoelectric Ceramic |
Weight |
0.39oz (11g) |
Length |
1.0 in. (25mm) |
Width |
0.6 in. (16mm) |
Height |
1.0 in. (25mm) |
Gain Type |
Single setting on-gyro or dual setting remote from transmitter |
Operating Voltage |
4.2-8.0V |
Reversing Switch |
Yes |
High/Low Frame Rate Select |
Yes - Stardard/Analog Servo and Digital Servo Support |
