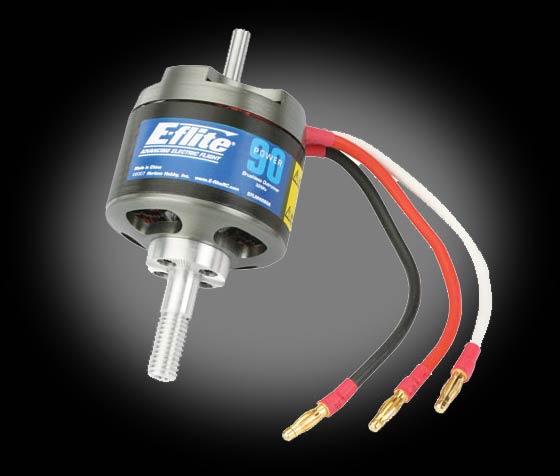

0-EFLM4090A Power 90 Brushless Outrunner Motor 325 kV <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">Designed to deliver clean and quiet power equivalent to or surpassing the power
of a 90-size 2-stroke glow engine for sport and scale airplanes weighing
8- to 13-pounds (3.6- to 5.9-Kg), 3D airplanes up to 10-pounds (4.5-Kg),
or models requiring up to 1800 watts of power. It will provide excellent
3D performance for the Hangar 9 Frenzy 100 ARF, ShowTime 4D 90 ARF, FuntanaX
100 ARF and other similar class models. The Power 90 also provides great
power and performance for the Seagull Ultimate Bi-Plane 90 ARFs.</font></font></p>
<p><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Equivalent to or surpassing the power of a 90-size, 2-stroke, glow engine
for sport and scale airplanes weighing 8 to 13 lbs.(3.6- to 5.9-kg)<br>
Ideal for 3D airplanes weighing up to 10 lbs (4.5 kg)<br>
Ideal for models requiring up to 1800 watts of power<br>
High torque, direct drive alternative to inrunner brushless motors<br>
External rotor design for better cooling<br>
High quality construction with ball bearings and hardened 6mm steel shaft<br>
Includes mount and mounting hardware with two 10mm prop shaft adapters tapped
out for 8-32 threads</font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless
Outrunner Motor </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Equivalent
to or surpassing the power of a 90-size 2-stroke glow engine</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearings </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">16x8
to 18x8</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">21.6V
- 31.2V</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">325Kv</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">02
ohms</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"> 2.00A
@ 10V</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6mm
(.24 in) (Includes two 10mm prop shaft adapters)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">52mm
(2.00 in)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">450g
(15.8 oz)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">56mm
(2.20 in)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">50A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">65A
(15 sec.)</font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">85A
High Voltage Brushless Speed Controller</font></td>
</tr>
</table>
