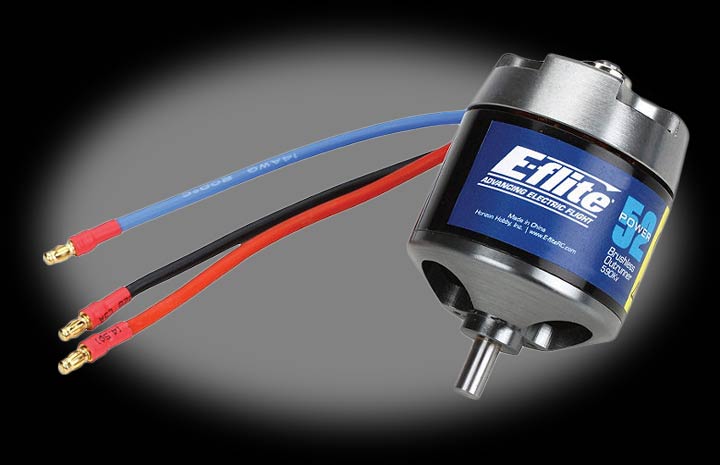

0-EFLM4052A E-flite Power 52 Brushless Outrunner Motor, 590Kv <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Designed to deliver clean and quiet power, the Power 52 Brushless Outrunner Motor, 590Kv is designed for 40- to 50-size sport and scale airplanes, 40- to 50-size 3D airplanes, as well as models requiring up to 1650 watts of power.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Equivalent to a 46- to 55-size glow engine for 5.00- to 7.50 lb (2.20 – 3.40 kg) airplanes.<br />
Ideal for 40- to 50- size 3D airplanes up to 6.00 lbs (2.70 kg)<br />
Ideal for models requiring up to 1650 watts of power<br />
High-torque, direct drive alternative to inrunner brushless motors<br />
Includes mount, prop adapters and mounting hardware<br />
Quiet, lightweight operation<br />
External rotor design 6mm shaft can easily be reversed for alternative motor installations<br />
High-quality construction with ball bearings and hardened steel shaft<br />
Slotted 14-pole outrunner design</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Adjustable Timing </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Application</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Airplane</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14-20 NiMH/NiCd or 4-6S LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Connector Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4mm Bullet </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">51A+</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Idle Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.3A at 18.5V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Watts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up to 1650 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">75A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Design </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Outrunner</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.0 in. (50mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Power Plant Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">25-52 Electric </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">590</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4S: 14 x 7 - 15 x8<br />
5S: 13 x 8 - 15 x 7<br />
6S: 11 x 10 - 12 x 8</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Recommended Speed Control </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">80-Amp</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.016 Ohm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensored</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">no</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6mm</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.1 in. (80mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Equivalent to or surpassing the power of a 50- to 55-size 2-stroke glow engine </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">14.8V-22.2V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">12.2 oz (346g) </font></td>
</tr>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Needed To Complete</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
80-Amp brushless ESC<br />
4S–6S Li-Po or 14- to 16-cell Ni-MH/Ni-Cd Battery<br />
Propeller</font></p>
$109.99
Manual
