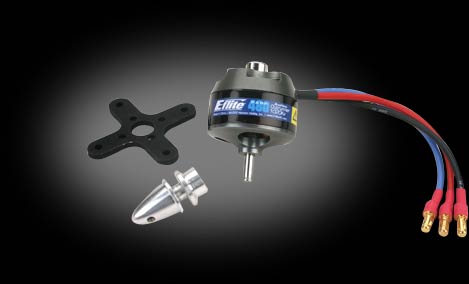

0-EFLM1505 EFL-480-1020 Park 480 Brushless outrunner Motor <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">The Park 480 Brushless Outrunner motor is designed to deliver clean and quiet power for 3D park flyers 20-30 ounces (565-850 grams), scale park flyers 25-35 ounces (710-990 grams) or models requuiring up to 275 watts of power. It's an especially good match for E-flite's Mini Edge 3D ARF and Mini Funtana 3D ARF, and would provide extreme power for sport park flyers such as the Mini Ultra Stick ARF. </font></font></p>
<p><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Specifically this 1020Kv optin can handle more current than the 920Kv version so it is a much better option when matched with the ThunderPower Pro-Lite cells. </font><font color="#00FF66" face="Arial, Helvetica, sans-serif"><br>
</font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Park Flyer </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearings </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10x7 to 12x6 </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">7.2-12V</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1020</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.06 ohms </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.10A at 8V </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.16 on (4mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.30 in (33mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">3.1 ounces (87g) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.40 in (35mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Wire Gauge </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">16</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">22A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">28A for 15 seconds </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">6-10 NiCad/NiMh or 2-3LiPoly </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">25A to 40A Brushless </font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">25A to 40A Brushless ESC </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10x6 to 12x6 Prop </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2S - 3S LiPoly or 6-10 Cell NiCad/NiMh</font></td>
</tr>
</table>
