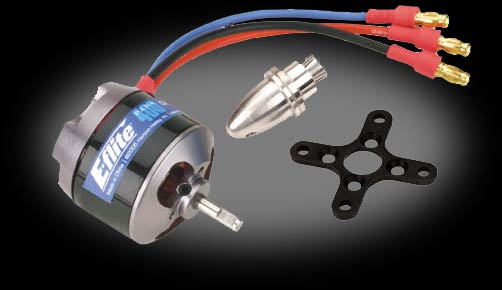

0-EFLM1305 EFL-400-920 Park 400 Brushless Outrunner Motor <p><font face="Arial, Helvetica, sans-serif"><font color="#00FF66" size="2">Their great performance and small size make them perfect for small 3D and other park flyer models. The external rotor design eliminates the need for a gearbox, saving you valuable weight to get the perfect performance out of the model. </font></font><font color="#00FF66" face="Arial, Helvetica, sans-serif"></font></p>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td width="136"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td width="183"><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Replacement for 370 or 400 </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Bearins or Brushings </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Ball Bearings </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">9x7 to 11x4.7 </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Voltage</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">7.2-12V</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">920</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.10 ohms </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Idle Current</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.70 at 10V </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">0.125 in (3.17mm)</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.15 (29mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">56g (2.0 oz) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.10 in (28mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">1.10 in (28mm) </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">13A</font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2-3 LiPoly or 6-10 NiCad/NiMh </font></div></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><div align="center"><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10-20A Brushless ESC </font></div></td>
</tr>
</table>
<font color="#00FF66"><font face="Arial, Helvetica, sans-serif">
</font><br>
<font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font>
<br>
<table width="325" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">10-20A Brushless ESC </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">9x7 - 11x4.7 Prop </font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">2S - 3S 860-1320mAh LiPoly Battery </font></td>
</tr>
</table>
