0-EFLA1060B E-Flite 60-Amp Pro Switch-Mode BEC Brushless ESC v2 <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The E-flite® 60-Amp Pro Switch-Mode BEC Brushless ESC (V2). This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Up to 60 amps continuous current with proper air flow and 75 amps burst current (15 seconds)<br />
5A continuous current, 5V switch-mode BEC circuit (proper cooling and airflow required)<br />
Stronger BEC for support of most 3-axis stabilization systems<br />
Drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage<br />
3- to 6-cell Li-Po, 9- to 18-cell Ni-MH/Ni-Cd input voltage<br />
Finned heat sinks<br />
Programmable motor braking<br />
Safe power-arm mode prevents accidental starts<br />
Programmable low voltage cutoff with settings for 3-cell Li-Po (9V), 4-cell Li-Po (12V), 5-cell Li-Po (15V), 6-cell Li-Po (18V) or 74% of battery starting voltage<br />
Programmable throttle input range (1.1ms-1.9ms or 1.2ms-1.8ms)<br />
Programmable soft start for helis and airplanes<br />
Auto motor shut down if signal is lost or there is interference<br />
Programmable timing--5 user-selectable ranges for use with a large variety of brushless motors<br />
Utilizes new smaller MOSFET technology to minimize weight<br />
Radio system power on/off switch<br />

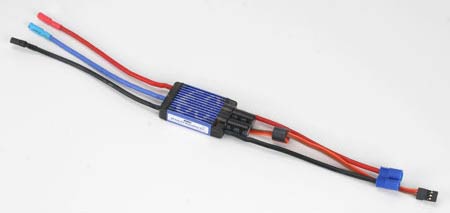

Pre-wired connectors--E-flite® EC3™ connector on battery input and 3.5mm gold bullet connectors on motor output leads</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Amperage: 40-60<br />
Brake: Yes - Programmable<br />
Cells w/BEC: 3-6S Li-Po or 9-18 Ni-MH/Ni-Cd<br />
Continuous Maximum Current: 50 - 75A<br />
Height: 0.61 in (15.5mm)<br />
Input Connector Types: EC3<br />
Input Voltage: 10.8V - 22.2V<br />
Length: 2.85 in (73.0mm)<br />
Momentary Peak Current: 15 sec @ 75A with proper cooling air flow<br />
Output Connector Types: 13 AWG with 3.5mm female gold bullet connectors<br />
Type: Brushless<br />
Weight: 2.65 oz (75.0 g)<br />
Width: 1.30 in (33.0mm)<br />
Wire Gauge: 13AWG</font></p>

E-Flite 60-Amp Pro Switch-Mode BEC Brushless ESC v2
This is a high-quality sensorless brushless electronic speed control with an integrated switch-mode BEC that is very lightweight and efficient.

$84.99
Robot MarketPlace - E-Flite 60-Amp Pro Switch-Mode BEC Brushless ESC v2

Electronics
    Brushless Motor Controllers

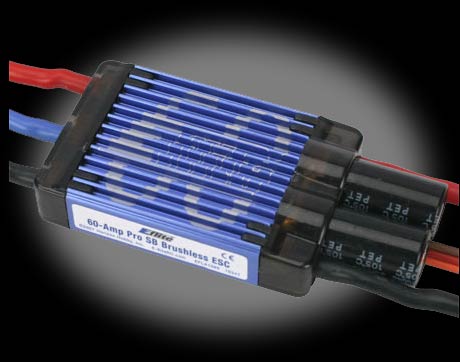

Click photo to enlarge.

E-Flite 60-Amp Pro Switch-Mode BEC Brushless ESC v2
Part# 0-EFLA1060B
