0-EFLA106 E-flite 30-Amp Mini Brushed ESC with Brake <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Now electric flight fans have a new choice when it comes to high-performance speed controls for their aircraft. E-flite's new selection of 5-, 10-, 20- and 30-amp ESCs are loaded with the kinds of features they demand at a very affordable price. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Features<br />
For use with Speed 400, 500, and 600 motors and below<br />
Proportional forward w/brake<br />
30-amp continuous current<br />
Thermal overload protection<br />
Auto cut-off with BEC<br />
Prewired with connectors</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No</font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Maximum Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">30A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-12V</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Limit </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up to Speed-600 series </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overload Protection </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Auto Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.37 in. (34.8mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.71 in. (18mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.34 in. (8.6mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.86 oz. (24.4g) </font></td>
</tr>
</table>

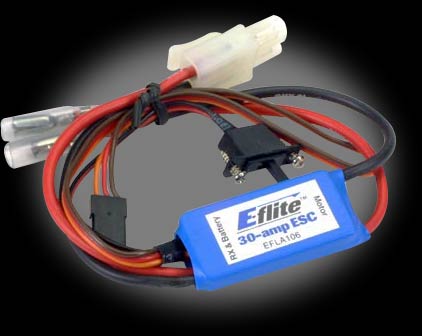

E-flite 30-Amp Mini Brushed ESC with Brake
Now electric flight fans have a new choice when it comes to high-performance speed controls for their aircraft.

$39.99
Robot MarketPlace - E-flite 30-Amp Mini Brushed ESC with Brake

Electronics
    Small Single-Channel Speed Controllers


Click photo to enlarge.

E-flite 30-Amp Mini Brushed ESC with Brake
Part# 0-EFLA106
