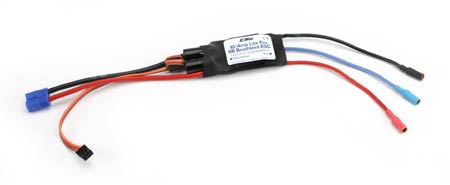

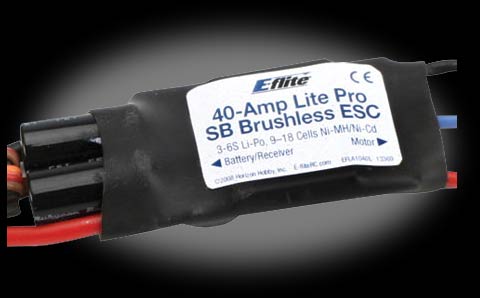

For up to 40 amps of continuous current with proper airflow, the E-flite 40-Amp Lite Pro SB brushless ESC delivers. It drives up to 7 analog or 6 digital servos with the BEC on any recommended input voltage. This brushless ESC includes programmable motor braking, soft start for helis and planes, timing, throttle input range and low voltage cutoff. It also features auto motor shutdown in case of lost signal or interference. The safe power-arm mode prevents accidental starts. All the great features of E-flite's popular 40-Amp Pro SB Brushless ESC, in a lighter weight package perfect for use in large-size park flyers and mid-size models where space and weight are more critical.
Features
Up to 40-amp continuous current with proper airflow, 55-amp burst current
5-volt Switch-Mode BEC circuit capable of 2.5-amp continuous current
Drives up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage
3S-6S LiPo or 9- to 18-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable soft start for helis and airplanes
Auto motor shutdown if signal is lost or there is interference
Programmable timing Ð 5 user-selectable ranges for use with a larger variety of brushless motors
Programmable throttle input range (1.1-1.9ms or 1.2-1.8ms)
Heli mode for starting the motor with a low speed ratio
Optional RS232 Serial Link available for programming
Pre-wired connectors-E-flite EC3 connectors on battery input and 3.5mm female gold bullets on motor output leads
Specs |
Brake |
Yes |
Continuous Maximum Current |
40A |
Input Voltage |
3S-6S LiPo or 9- to 18-cell Ni-MH/Ni-Cd |
Input Connector Types |
13AWG with E-Flite EC3 connector |
Output Connector Types |
16AWG with 3.5mm Female Gold Bullet connectors |
Momentary Peak Current |
55A |
BEC Voltage |
2.5A continuous |
Size |
31 x 66 x 12mm (1.2 x 2.6 x 0.47in.) |
Weight |
48g (1.7oz) |
