This product has been discontinued. Please see this similar product instead.The 40-Amp Pro SB Brushless ESC with Switch-Mode BEC, and advanced programming,
allows you to operate up to 7 analog or 6 digital standard-sized servos with
the BEC on any recommended input voltage.
Overview

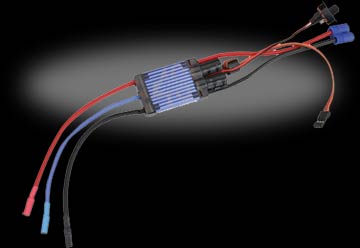

The E-flite 40A Pro Switch-Mode BEC Brushless ESC is a high-quality, innovative
and efficient sensorless brushless electronic speed control with an integrated
switch-mode BEC. It can operate without the need for a separate receiver
battery to power your servos and receivers, saving you weight and complication.
It is capable of up to 40 amps continuous current when using 3- to 6-series
Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized
servos with the BEC on any recommended input voltage. This ESC also features
an exposed, finned heat sink aluminum case with lightweight plastic endcaps.
Additional features include safe power arming along with advanced programmable
features such as low voltage cutoff, braking, timing, throttle input range,
and more, making this truly a ‘pro series’ speed control.
Key Features
Up
to 40 amps continuous current with proper air flow, with 55A peak
5V switch-mode BEC circuit capable of 2.5A continuous current on any recommended
Drives up to 7 analog or 6 digital standard-sized servos with the BEC on any
3–6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage
Finned heat sinks
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cut-off with settings for 3S Li-Po (9V), 4S Li-Po
Programmable soft start for helis and airplanes
Auto motor shutdown if signal is lost or there is interference
Programmable timing--5 user-selectable ranges for use with a larger
Programmable throttle input range (1.1–1.9ms or 1.2–1.8ms)
Heli mode for starting the motor with a low speed ratio
Utilizes new smaller Mosfets technology to save weight
Radio System Power On/Off Switch
Optional RS232 Serial Link available for programming (EFLARS232)
Pre-wired connectors--E-flite® EC3 on battery input and 3.5mm female
Specs
|
Brake |
Yes-Programmable |
Continuous
|
40A |
Input
Voltage: |
10.8V-22.2V |
Input
Connector Types |
13
AWG with E-Flite EC3 Connector |
Output
Connector Types |
13
AWG with 3.5mm Female Gold Bullet Connectors |
Momentary
Peak Current |
55A
(15 sec) |
Dimensions |
(WxLxH)
68x33x13 mm (2.7x1.3x.5 in) |
Weight |
62g
(2.2 oz) |
