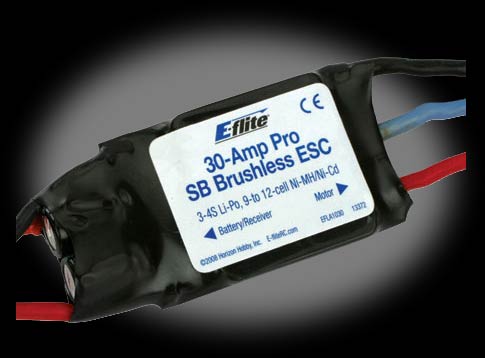

Robot MarketPlace - E-Flite 30-Amp Pro Switch-Mode BEC Brushless ESC

This product has been discontinued. Please see this similar product instead.

E-flite's 30-amp Pro SB brushless ESC offers up to 30 amps of continuous current with proper airflow and a peak of 35 amps. It drives up to 5 analog or 4 digital sub-micro servos with the BEC on any recommended input voltage. This brushless ESC includes programmable motor braking, soft start for helis and planes, timing, throttle input range, and low-voltage cutoff. It also features auto motor shutdown in case of lost signal or interference. The safe power-arm mode prevents accidental starts.

Features
Up to 30-amp continuous current with proper airflow, 35-amp peak
5-volt Switch-Mode BEC circuit capable of 700mAh continuous current on any recommended input voltage
Drives up to 5 analog or 4 digital sub-micro servos with the BEC
3S-4S Li-Po or 9- to 12-cell Ni-MH/Ni-Cd input voltage
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cut-off with settings for 3S Li-Po (9.2V), 4S Li-Po (12V) or 74% of battery starting voltage
Programmable soft start for helis and airplanes
Auto motor shutdown if signal is lost or there is interference
Programmable timing - 5 user-selectable ranges for use with a larger variety of brushless motors
Heli mode for starting the motor with a low speed ratio
Optional RS232 Serial Link available for programming

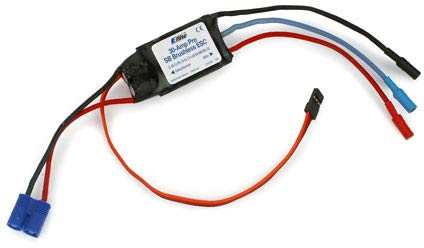

Pre-wired connectors - E-flite EC3 connectors on battery input and 3.5mm female gold bullets on motor output leads

Specs
Brake	Yes
Continuous Maximum Current	30A
Input Voltage	3S-4S LiPo or 9- to 12-cell Ni-MH/Ni-Cd
Input Connector Types	16AWG with E-Flite EC3 connector
Output Connector Types	16AWG with 3.5mm Female Gold Bullet connectors
Momentary Peak Current	35A
BEC Voltage	700mAh continuous
Size	28 x 51 x 8.7mm (1.1 x 2.0 x 0.35in.)
Weight	31g (1.1oz)
