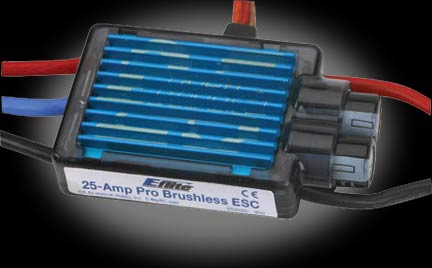

This product has been discontinued. Please see this similar product instead.This controller has been designed for use in radio control aircraft and to support
continuous currents of up to 25 amps when using 2- to 3-cell Li-Po battery
packs and up to four sub-micro servos. The ESC features a lightweight plastic
case with exposed, finned heat sinks for both the motor drive MOSFETs and,
unlike many controllers, the BEC regulators give you a more reliable and powerful
power supply for your servos.
Features:
-Up to 25 amps continuous current with proper air flow
-Finned heat sinks for both the motor drive MOSFETs and dual BEC regulators
to support up to 4 sub-micro servos
-Programmable motor braking
-Safe power-arm mode prevents accidental starts
-Programmable low voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell
Li-Po (9V) or 70% of battery starting voltage
-Programmable throttle input range (1.1-1.9 ms or Auto Select)
-Auto motor shut down if signal is lost or there is interference
-Programmable timing - 2 user-selectable ranges for use with a large variety
of brushless motors

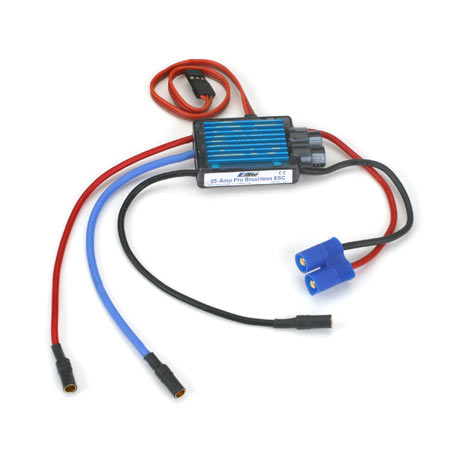

-Pre-wired connectors - E-flite EC3 on battery input and 3.5mm female gold
bullets on motor output leads
-Soft start
Specs:
Brake: Yes - Programmable
Continuous Maximum Current: 25A
Input Connector Types: 16 AWG with E-flite EC3 connector
Output Connector Types: 16 AWG with 3.5mm Female Gold Bullet Connectors
Momentary Peak Current: 30A (15 sec)
Dimensions (WxLxH): 28x48x11 mm (1.1x1.9x.4 in)
Weight: 32 g (1.2 oz)
Cells w/BEC: 2-3S Li-Po or 6-10 Ni-MH/Ni-Cd
