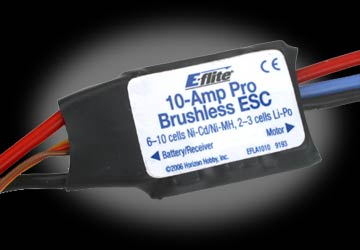

This controller has been designed for use in radio control aircraft and to support continuous currents of up to 10 amps when using 2-3 cell Li-Po battery packs and up to four sub-micro servos. Standard features include advance BEC and safe power-arming along with programmable features such as low voltage cutoff, braking, timing and throttle input range.
Features
Up to 10 amps continuous current with proper air flow
Programmable motor braking
Safe power-arm mode prevents accidental starts
Programmable low voltage cutoff with settings for 2-cell Li-Po (6V), 3-cell Li-Po (9V) or 70% of battery starting voltage
Programmable throttle input range (1.1ms–1.9ms or Auto Select)
Auto motor shut down if signal is lost or there is interference
Programmable timing—2 user-selectable ranges for use with a large variety of brushless motors

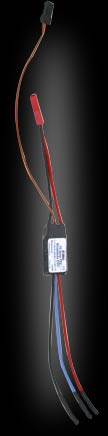

Pre-wired connectors—JST on battery input and 2mm female gold bullets on motor output leads
Soft start
Specs |
Brake |
Yes - Programmable |
Continuous Max Current |
10 Amps |
Input Connector Types |
20 AWG with JST connector |
Output Connector Types |
20 AWG with 2mm Female Gold Bullet connectors |
Momentary Peak Current |
12A (15 sec) |
Dimensions |
17.5 x 30 x 10 mm |
Weight |
0.35 oz. (10g) |
Cells with BEC |
2-3S LiPo
6-10 NiMH/NiCad |
