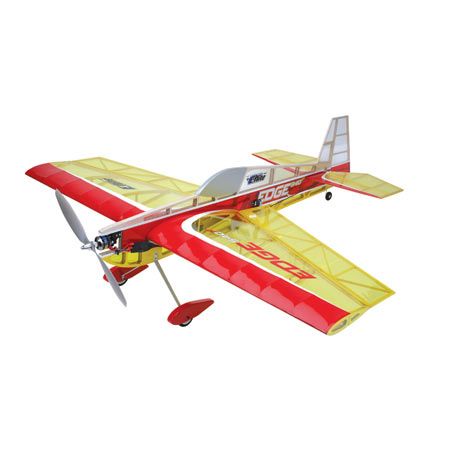

0-EFL2600 E-flite Edge 540 BP 3D ARF <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Edge 540 BP 3D combines the sturdy construction of a balsa/lightweight plywood airframe with the uninhibited 3D capability of a lightweight profile park flyer. It&#8217;s all made possible by its intelligently engineered, open structure design that keeps weight to a bare minimum while providing all the structural integrity of a real wooden airframe. This feather-light construction, combined with a high-output brushless motor, will provide spine-tingling 3D and freestyle performance that will let you really push the limits. And it comes from the factory 90% built and covered in genuine UltraCote, so you can be up and flying in no time.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Light wing loading for excellent 3D performance<br />
Open structure airframe keeps weight to a minimum<br />
Tapered-thickness airfoil for improved handling<br />
90% factory built and covered in UltraCote® and UltraCote Lite<br />
Factory-drilled control horn mounting holes<br />
Factory-finished wheel pants<br />
Includes outrunner stick mount for use with Park 400 and Park 450 outrunner motors<br />
Includes all hardware<br />
Generously proportioned control surfaces</font></p>
<table cellpadding="0" cellspacing="0" style="border: 1px solid #aaa; border-bottom: none; margin-top: 5px;" width="455">
<tbody style="border-top: 1px solid black;"><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Wingspan:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35.5in (900mm)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Overall Length:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36.5 in (930mm)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Wing Area:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">410 sq in (26.5 sq dm)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Flying Weight:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15-16 oz (425-455g)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Motor Size:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Park 400 or Park 450</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Radio:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6 channels (for proper mixing)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Servos:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 sub-micro</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Trim Scheme Colors:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ultracote Lite Transparent Clear (HANU964), Ultracote Lite Transparent Yellow (HANU967),Ultracote White (HANU870),Ultracote True Red (HANU866)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>CG (center of gravity):</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 1/2-inch (114mm)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Prop Size:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11x3.8 slowflyer (park 400) or 12x6 E (Park 450)</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Hardware Included:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Speed Control :</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">20A Brushless</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Recommended Battery:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11.1V 3-cell 910-1320mAh Li-Po</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Control Throw (Ailerons):</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1" (25mm) with 20% Expo on Low or 2" (50mm) with 40% Expo on High</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Control Throw (Elevator):</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2" (50mm) with 20% Expo on Low or 2-3/4" (70mm) with 45% Expo on High</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Control Throw (Rudder):</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3-1/2" (89mm) Left and Right</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Scale:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Park Flyer</font></td>
</tr><tr>
<td style="border-bottom: 1px solid #aaa; padding: 5px;" width="40%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><strong>Approx. Assembly Time:</strong></font></td>
<td style="border-left: 1px solid #aaa; border-bottom: 1px solid #aaa; padding: 5px;" width="60%"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3-4 Hours</font></td>
</tr></tbody>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Needed to Complete</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
6-channel transmitter (for proper mixing and dual rate capabilities) <br />
Micro receiver <br />
4 sub-micro servos <br />
Motor <br />
20A Brushless ESC <br />
Propeller<br />
Battery & Charger </font></p>
