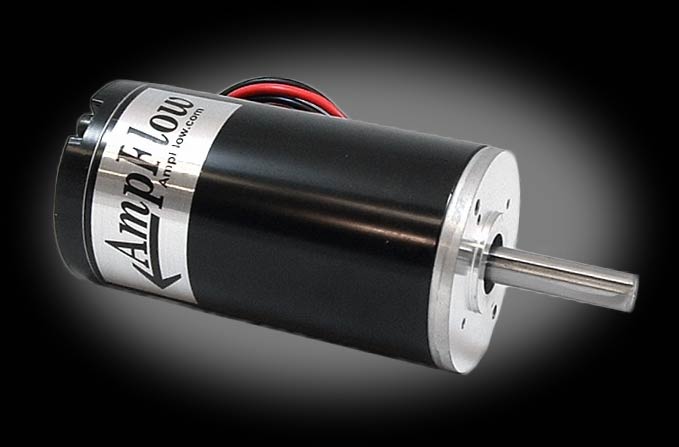

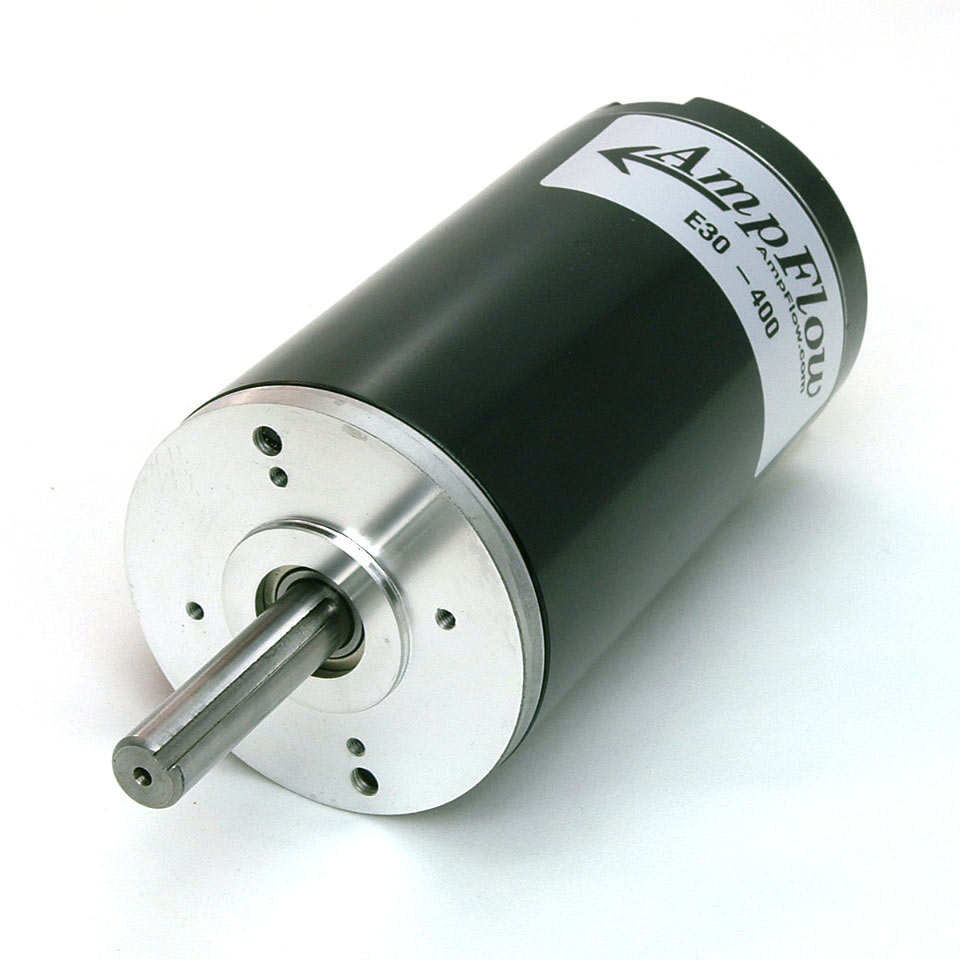

0-E30-400 AmpFlow E30-400 Motor
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AmpFlow motors are designed to give the highest level of performance possible in a brushed DC motor. This is achieved by advanced design and the use of less expensive ferrite magnets.
</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The economy E30 motors are designed to give good performance at the lowest possible price.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These motors are used in diverse applications including robots, industrial motion control, factory automation, semiconductor manufacturing, motorized scooters, go karts, and electric bicycles.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Diameter</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.1 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Horsepower </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.1</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Torque </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1500 oz-in </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Efficiency</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">79%</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM at 24V </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5700 rpm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Keyway</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Capacitors</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Magnet Type </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ferrite</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No Load Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.2 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">266 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Terminal Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.089 Ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kt</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.63 oz-in/Amp </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Kv</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">240 rpm/Volt </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Rotor Inertia </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">.05 oz-in-sec^2 </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thermal Resistance </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 degC/Watt</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.9 lbs. </font></td>
</tr>
</table>
