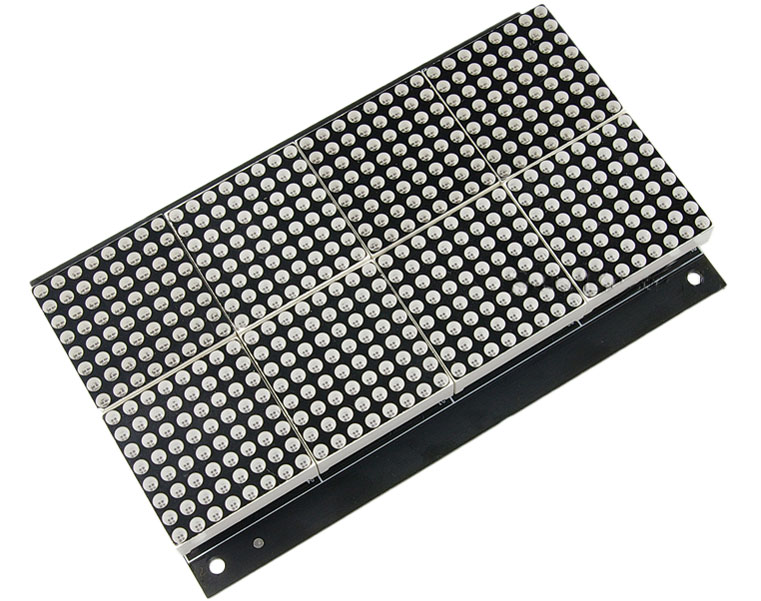

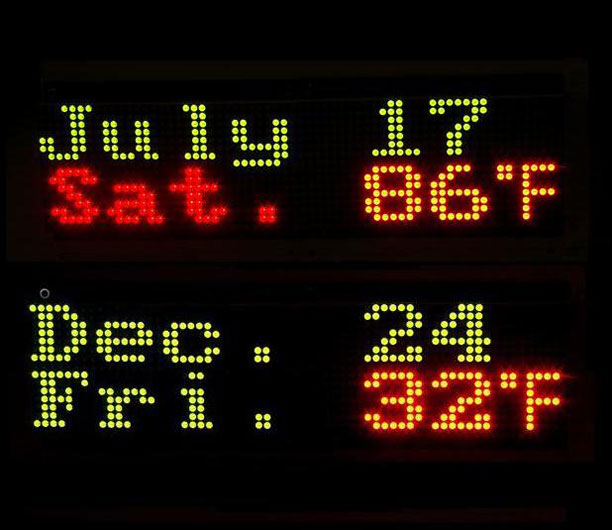

0-E000013 32X16 RG Bicolor LED Dot Matrix Unit Board <p><font color="262626" size="2" face="Arial, Helvetica, sans-serif">This HT1632C-based item integrates both bright red and green LEDs built into each of 32x16 3mm dots, providing high distinguished red, green and even yellow display when red and green LEDs are illuminated simultaneously. Users can build a driver board or choose the driver board to light up this LED board and customize their own character libraries to display their favorite symbols and adjust the contrast ratio of this display for better visual effect.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br />

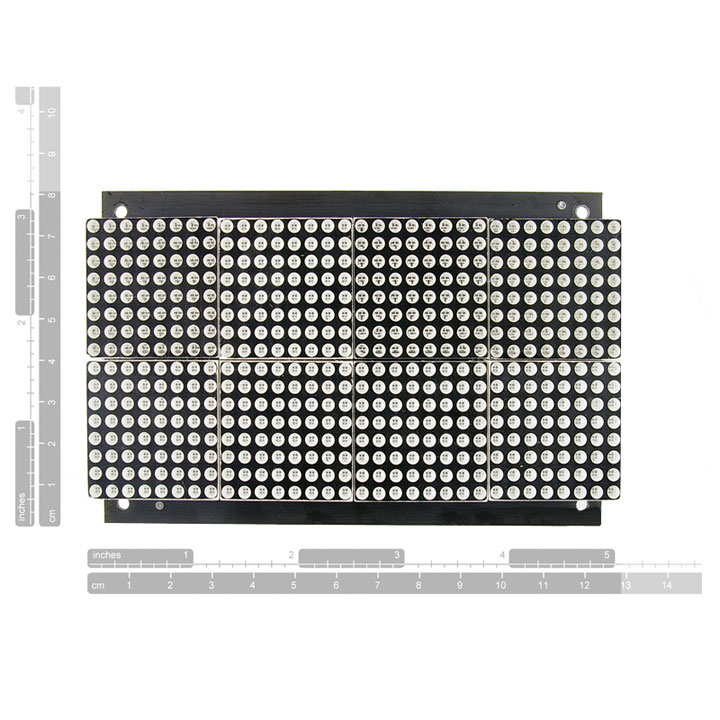

Size: 128.27 (L) x 81.30 (W) x 23.84 (H)±0.2mm<br />
HT1632C-based 32x16 LED dot-matrix info board<br />
Light-emitting diameter: 3mm<br />
Available light-emitting color: red, green and yellow<br />
16-level PWM brightness control<br />

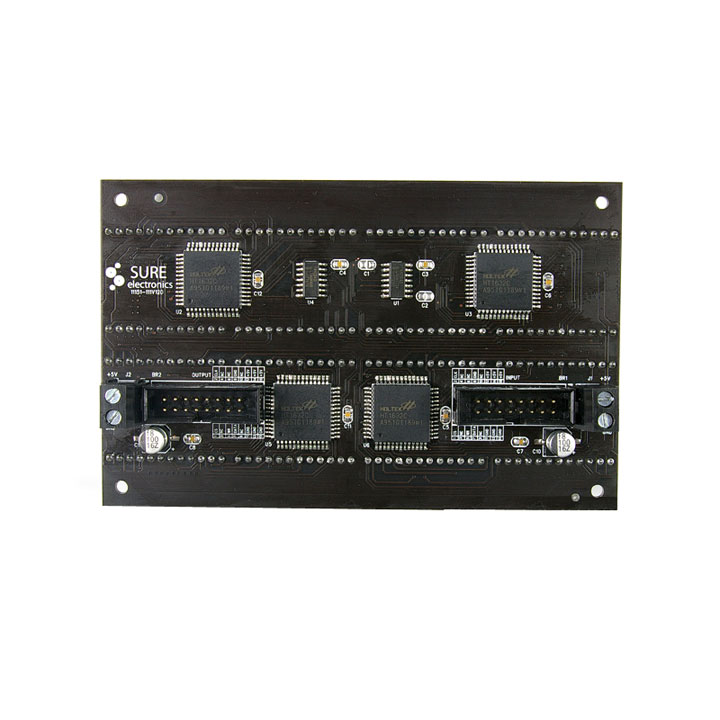

Either one of the two 16-pin male sockets can be used to connect drive board, which powers the 32x16 LED, as well as send data and control signal in a SPI-like mode<br />
Two +5V auxiliary power supply terminals provided.<br />
Up to 2 boards are recommended to connected in series to display more characters</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="4"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Parameter</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Symbol</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Value</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Unit</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Operating Voltage </font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Vin</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">5</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">V</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Storage Temperature </font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Tstg</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">-20 - 80 </font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">degC</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Average Operating Current </font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">lavrg</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">0.5</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">A</font></td>
</tr>
<tr>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Maximum Operating Current<br />
(All LEDs on, 100% PWM duty cycle)</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">Imax</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">1.37</font></td>
<td><font color="262626" size="2" face="Arial, Helvetica, sans-serif">A</font></td>
</tr>
</table>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Package Contains</font><font color="262626" size="2" face="Arial, Helvetica, sans-serif"><br />
32x16 Bicolor LED 3mm Dot Matrix Display Info Board<br />
16-pin IDC cable</font></p>
