0-DYS30051 DYS 50A Brushless ESC <p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Compact 50 amp Brushless ESC<br />
No BEC<br />
50 amps continuous, 65 amps burst<br />
46mm x 35mm x 8mm, 42g plus 3g bullets<br />
Handles 2-7 LiPo cells<br />
Programmable LiPo or NiMh cutoff<br />
Programmable brake<br />
Low resistance </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">42.5 amp Max 5S-6S<br />
35 amp Max on 7S </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Programmable features include:</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Brake on, off, soft, medium, hard<br />
LiPo cutoff 2S-7S<br />
Auto NiMh (0.8V per cell)<br />
Throttle setting: auto or 1.1ms to 1.8ms<br />
Soft or hard start<br />
Soft or hard cutoff<br />
Timing 1/7/15/30<br />
PWM 8KHz or 16KHz </font></p>

DYS 50A Brushless ESC
This ESC is a great, inexpensive match for large motors that draw up to 50 amps.

$25.99
Robot MarketPlace - DYS 50A Brushless ESC

Electronics
    Brushless Motor Controllers

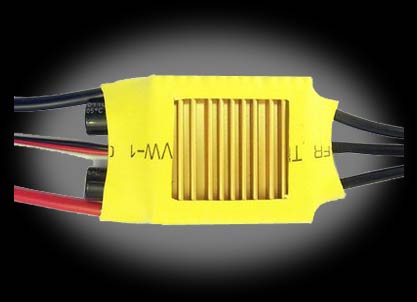

Click photo to enlarge.

DYS 50A Brushless ESC
Part# 0-DYS30051
