Constant current 100A Max 125A <10s
Li-Poly 2-7 cells; Ni-MH 6-27 cells
Low resistant 0.0010 ohms
Dynamic braking
BEC: No
Auto shut down when lose signal
Slow down at 3.0V per cell Lipo,Cut-off at 2.9V per cell Lipo 0.8V Nim
User programming options
Battery Setting
Throttle Range
Brake Setting 4 options
Direction and Cutoff Type
Timing Mode Setting: 1¼/7¼/15¼/30¼
PWM Setting: 8K/16K

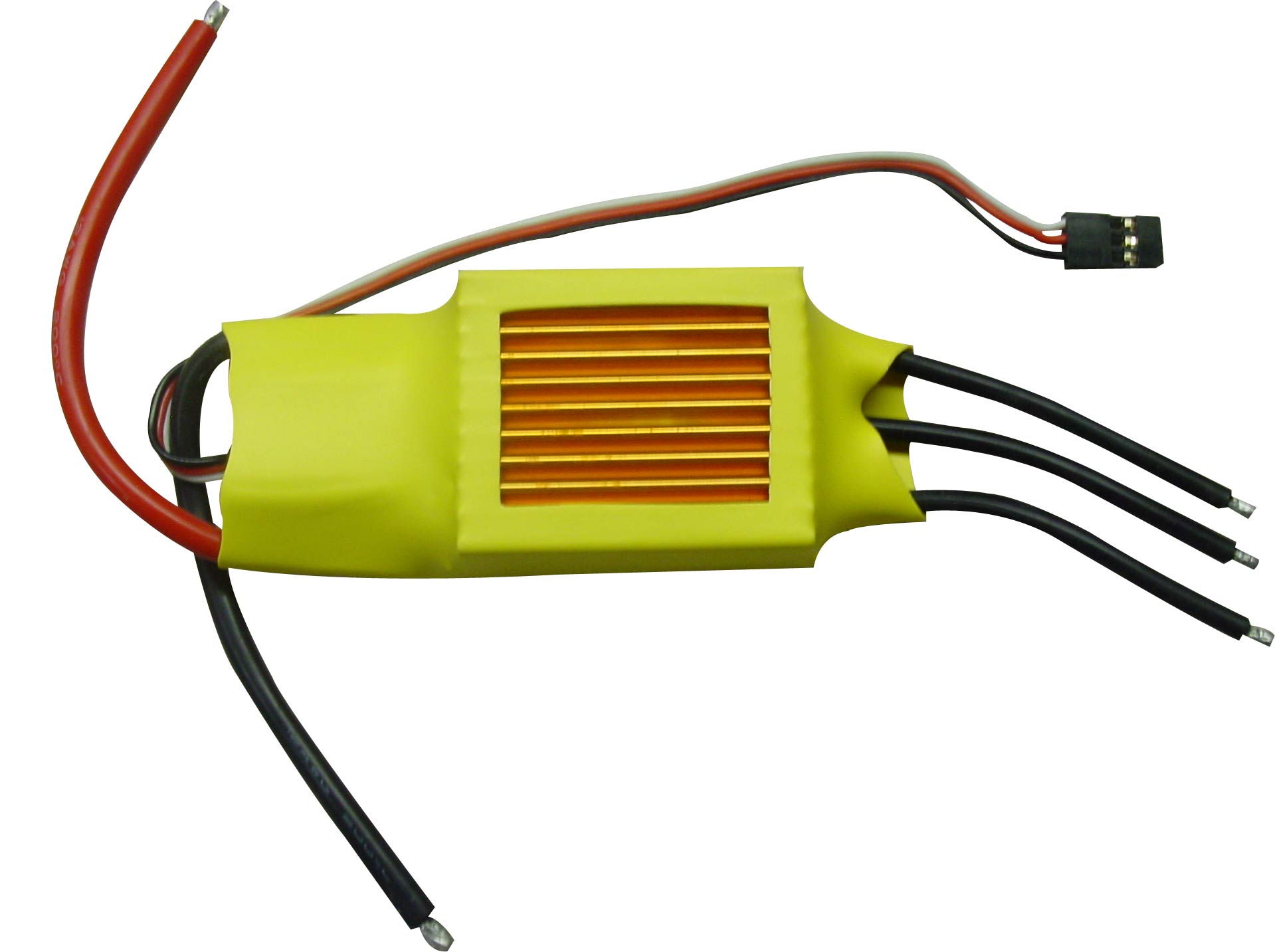

Important Note: this ESC is Opto, without BEC supplying power to your Receiver, you need extra power source for your receiver. You can use a UBEC, a voltage regulator, or extra batteries as the power source for your receiver. If you hear the music tone repeat again and again for more than 3 times, you may need to check your power source to the receiver.
PLEASE NOTE: The DYS Brushless ESCs sizes from 50A and up DO NOT have a BEC. You will need to supply power to your receiver from another source.
