Designed for use in aircraft, car, boat, and helicopter models. Unlike conventional servo arms, they are made of long fiber composites for added strength. Longer versions have increased throw allowing for greater movement in controls.
Includes

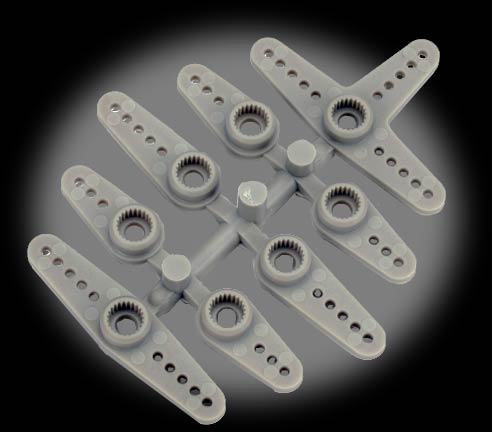

4 short, 2 long servo arms that extend in one direction from the servo center
One long arm that extends in two opposing directions from the servo center
One 3-arm horn
Specs
Short: Mounting holes at: 7, 10 and 12mm. Total length-16mm
Long: Mounting holes at: 8, 10, 13, 16, and 19mm Total length-22mm
Dual: Mounting holes at: 6, 10, 12, 16, and 18mm Total length-22mm
3-arm: Mounting holes at: 7, 10, 13, 16, and 19mm Total length-22mm
All measurements are from the center of the arm. The dual and 3-arm are only from one side to center. Actual overall length for both: 44mm
Fits the JR servos with splined output shafts.
