0-DTXP5737 Duratrax 550 Size Motor <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This is a great
little workhorse motor. A popular size for RC enthusiasts, we can
now make this motor available to everyone at a great price. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">High performance
in a small, inexpensive motor.</font></p>

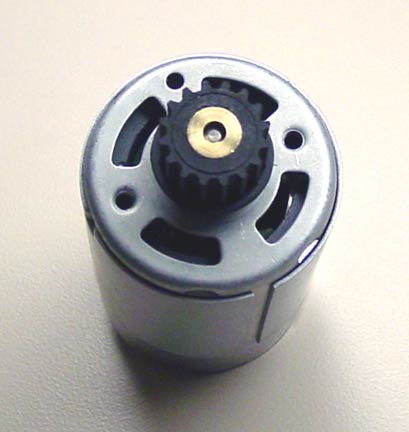

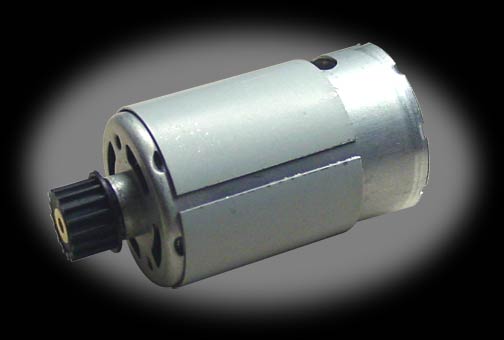

<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Now comes with a 16T, 3mm pitch pulley press fit onto the motor shaft. (We can remove this pulley from the shaft if you prefer, just choose the option from the above pop-up menu).<br>
Outer Shaft Diameter: 0.58 in.<br>
Inner Hole Diameter: 3mm </font><font color="#FFFF00" size="2" face="Arial, Helvetica, sans-serif">&nbsp; </font> </p>
<table width="270" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Speed
: </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">24,000
rpm @ 12V</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Angular
velocity constant:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2000
rpm/V</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Amps
@ nominal: </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">1.5
Amps</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Efficiency:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">45.33%</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Peak
Power:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.55
hp</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
current: </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">148
A </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Stall
torque: </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">91.65
oz-in</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Weight: </font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">8.20
oz (232.47 grams)</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Diameter:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">37mm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Length:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">57mm</font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
diameter:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3mm </font></td>
</tr>
<tr>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Shaft
length:</font></td>
<td class="main"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">16mm</font></td>
</tr>
</table>
<div align="center"><div align="right"></div>
</div>

Duratrax 550 Size Motor
High performance in a small, inexpensive motor.

$11.99
Robot MarketPlace - Duratrax 550 Size Motor

Motors
    Motors - Ungeared

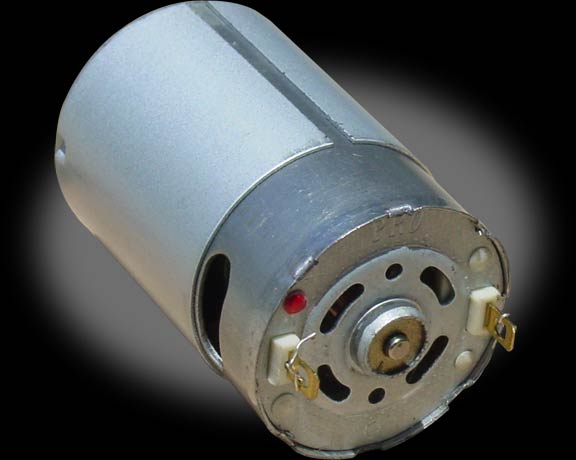

Click photo to enlarge.

Duratrax 550 Size Motor
Part# 0-DTXP5737
