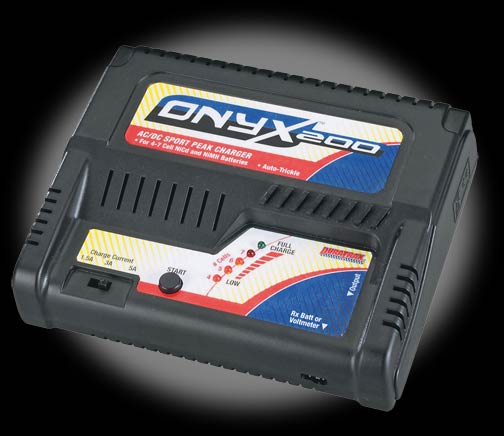

0-DTXP4200 DuraTrax Onyx 200 AC/DC Sport Peak Charger <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Every once in a while a new product comes along that is so good it raises the bar. Affordability is a given with these chargers, but you also get the kind of features that used to be reserved for competition-level drivers. Five different chargers offer a wide range of options to choose from -- each one tailored to fit your particular needs.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Onyx 200 is great for electric car or boat modelers. With charge rates from 1.5 to 5 amps, it can safely and fully charge batteries ranging from 750mAh "AAA" batteries and nitro receiver packs, to the biggest sub-C NiMH packs - and many things in between! Great for 1/18th to 1/8th scale electrics, nitro receiver packs, and more! A tiny, lightweight built-in switching AC power supply plus DC input capability is perfect for use at home or the track. Easy to see LEDs and audible tones make it easy to track the charge status at any time.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
A super-small, lightweight built-in AC power supply is great for cramped pit spaces, and easy portability.<br />
Selectable charge currents of 1.5A, 3A, and 5 amps, with an auto-trickle function.<br />
Pushbutton control, multiple LEDs, and audible tones make for easy set-up and control.<br />
A custom peak detection system loads NiCd and NiMH batteries full of power.<br />
A backup safety timer automatically stops charge to prevent accidental battery overcharge.<br />
Large alligator clips on the DC input easily connect to most 12V DC power sources.<br />
Includes a built-in output lead with standard plug. An adapter is available separately to connect batteries having a Deans® Ultra Plug®.<br />
Solid-state reverse polarity and current overload safety devices ensure trouble-free operation and long duration.
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">AC Input </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">110V AC 60Hz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">DC Input </font></td>
<td><p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">11-15V DC, built in lead with alligator clips </font></p> </td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Types </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4-7 NiCad/NiMH cells (4.8-8.4V) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Battery Capacity Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">750-7500mAh</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fast Charge Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5A, 3.0A, 5.0A linear (40W maximum) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fast Charge Termination </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak detection </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Fast Charge Safety Timer </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">90 minutes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">NiCad/NiMH Peak Sensitivty </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8mV </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">NiCad/NiMH Trickle Charge Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/20 fast charge setting (0-250mA) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Controls</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Pushbutton, slide-switch </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">LED Indicators </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4 red, 1 green </font></td>
</tr>

<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Audible Indicators </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Indicates starts, stops, errors </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Connection </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Built in lead with standard connector, built in jack for charging 4 or 5 cell receiver packs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Protective Devices </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Solid-state reverse polarity and current overload </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Case Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.74 x 4.60 x 1.61 in. (146 x 117 x 41 mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">17.0oz. (484g) </font></td>
</tr>
</table>
