0-DTXM1059 Duratrax Intelli Speed Sport Fwd/Rev ESC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">There's no end of extra-inexpensive sport ESCs or expensive, state-of-the-art racing controls. But to find great values between these two extremes, you have to look smart - and that makes DuraTrax IntelliSpeeds natural choices for the value-conscious performance racer.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The new Auto-Sport Forward / Reverse ESC adds reverse, for the perfect upgrade to a sport-level reversible ESC. It's a great value for start-up modelers and stock motors, but can also handle motors down to 18 turns - the type quickly becoming the standard in many start-up RTRs. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Simple "Plug In" set up for a quick and easy speed control use<br>
Digital glitch prevention<br>
Fully proportional forward and reverse control, with ABS brake<br>
Automatic set-up from the Tx. No adjustment dials or buttons, with high-visibility Red and Green set-up LEDs<br>
For stock motors having no fewer than 18 turns. Great for entry level racing<br>
Anti-lock Brake System (ABS) enables greater control while connering<br>
Ultra high frequency gives smoother throttle response, cooler running motors, and greater motor life<br>
Built in ON/OFF switch lets the vehicle be turned ON at the flip of a switch, not as soon as the battery is plugged in<br>
Futaba J connector installed
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Power </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">4.8-8.4V DC (4-7 cells) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Operating Frequency </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.0 kHz </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.0V / 1.0 amp </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On-Resistance</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.007 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Constant Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">128 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Peak Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">440 amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Acceleration Time Delay </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.34 seconds fixed </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Motor Turns Limit </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">No fewer than 18 turns </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Case Size </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.48 x 1.34 x 0.57 in. (42 x 38 x 16 mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.12 oz. (60g) </font></td>
</tr>
</table>

Duratrax Intelli Speed Sport Fwd/Rev ESC
Perfect for stock motors with no fewer than 18 turns. Features fully proportional forward and reverse, in addition to ABS braking.

$39.99
Robot MarketPlace - Duratrax Intelli Speed Sport Fwd/Rev ESC

Electronics
    Small Single-Channel Speed Controllers

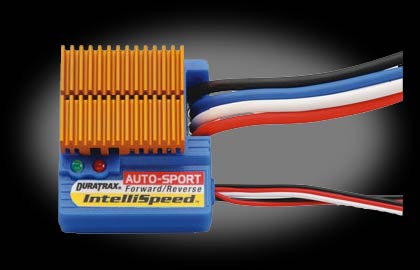

Click photo to enlarge.

Duratrax Intelli Speed Sport Fwd/Rev ESC
Part# 0-DTXM1059
