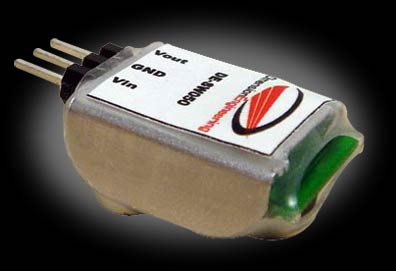

0-DE-SW050 5V 1A Switching Voltage Regulator <p><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">The DE-SW0XX family of switch mode voltage regulators are designed to be the
easiest possible way to add the benefits of switch-mode power to a new or
existing project. A DE-SW050 will allow you to take a higher voltage and
it step down a 5V output in a compact, efficient manner. The DE-SW0XX family
is pin-compatible with the common 78XX family of linear voltage regulators.
They have integrated decoupling capacitors, so external capacitors are not
generally necessary.</font><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif"></font></p>
<p><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Specifications</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Input
voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Up to 30V</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Current</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1A continuous</font></td>
</tr>

<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Output
Voltage</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">28mm x 16mm x 11mm</font></td>
</tr>
<tr>
<td><font color="#00FF66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.14 oz. (3.8g)</font></td>
</tr>
</table>
