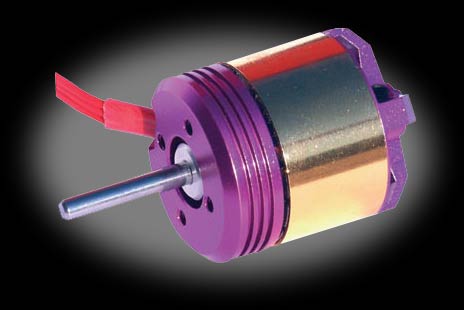

0-CYLCPLR07 Cyclon Mini CPLR Brushless Outrunner Motor <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These outrunner motors provide maximum power and minimum weight--a power-to-weight ratio, in fact, far above existing direct-drive motors in the range. Work on 2 - 3 Lipo and turn up to 9/4,7 Prop (3 lipo) for small models, Park Flyer or big indoor. 3D models fly superbly up to 500 grams, and 1000 grams for standard flying. Power from 50 to 150 Watts, weight 48grams.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9x6 to 11x4.7 (for 2S Li-Po); 8x4 to 9x4.7 (for 3S Li-Po)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1320</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance (Ri) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.215 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Idle Current (Io) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.51A @ 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15A (150 watts) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2-3S LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15-20A Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3.17mm (1/8in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">26mm (1.0in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">35mm (1.3in.) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">48g (1.7oz.) </font></td>
</tr>
</table>
