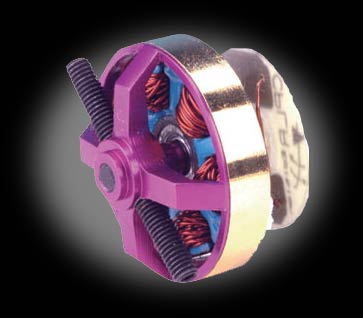

0-CYLCPLR03 Cyclon Nano CPLR Brushless Outrunner Motor with CF Tube <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">These outrunner motors provide maximum power and minimum weight--a power-to-weight ratio, in fact, far above existing direct-drive motors in the range. One of the smallest motors in the world able to fly your indoor models with high power. Weighs just 15 grams, but can turn an 8-inch prop and deliver 50 watts with a 2-cell Li-Po pack.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brushless Outrunner </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Recommended Prop Range </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">7x4 to 8x3.8</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">RPM/Volt (Kv) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1900</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance (Ri) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.350 ohms </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Idle Current (Io) </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.46A @ 6V </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Maximum Burst Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8A (50 watts) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2 LiPo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Speed Control </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">8-10A Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Built-in Prop Saver </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">26mm (1.0in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">23mm (0.9in) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15g (0.5oz) </font></td>
</tr>
</table>
