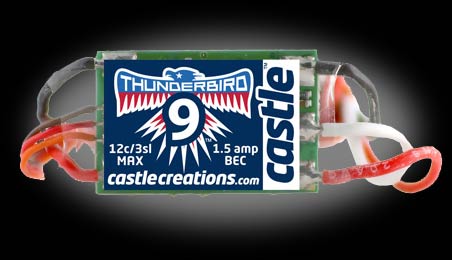

0-CSETB9 Thunderbird 9 Brushless Speed Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Thunderbird controllers feature automatic lipo detect cutoff right from the package! Just plug in and and fly your lipos safely with no programming needed (or change the setting to fly NiCad/NiMH)!</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Only Castle Creations can bring you this level of consistent quality and proven design for a price this low! Plus, it's backed by a full one year factory warranty, and supported by the company that set the standard for customer service in the hobby industry. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br />
Battery Eliminator Circuit (BEC): eliminates receiver battery<br />
Safe "Power On"<br />
Low torque "Soft Start": protects gear boxes and belt drives from shock<br />
Simple setup: no complicated switches or wiring<br />
Tough surface mount construction<br />
Smooth reverse exponential throttle<br />
Audible Arming Signal<br />
Self-calibrating endpoints: maximizes usable stick travel<br />
Auto Motor cut-off with reset<br />
Auto shut-down when signal is lost<br />
Microprocessor Controlled</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Forward</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Max. Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">9A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15V max. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Linear regulator<br />
1.5 amp max.</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.02in. (25.9mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.67in. (17mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.32in. (8.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.3oz (8g) </font></td>
</tr>
</table>
