0-CSETB54 Thunderbird 54 Brushless Speed Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Thunderbird-54 offers gobs of power at an unbelieveable price. You simply won't find this much controller for a better price, certainly not in the import bin! This controller is super for great aerobats such as the Multiplex Acromaster or for smaller powered gliders. </font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Battery Eliminator Circuit (BEC): eliminates receiver battery<br>
Safe "Power On"<br>
Microprocessor Controlled<br>
Tough surface mount construction<br>
Audible Arming Signal<br>
Auto Motor cut-off with reset<br>
Low torque "Soft Start": protects gear boxes and belt drives from shock<br>
Smooth reverse exponential throttle<br>
Self-calibrating endpoints: maximizes usable stick travel<br>
Auto shut-down when signal is lost<br>
Simple setup: no complicated switches</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Forward</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Max. Current </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">54A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15V Max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.00 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.15 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.40 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.2 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">3A Max </font></td>
</tr>
</table>

Thunderbird 54 Brushless Speed Controller
The Thunderbird-54 offers gobs of power at an unbelieveable price.

$50.99
Robot MarketPlace - Thunderbird 54 Brushless Speed Controller
CLOSE X
Loading Image...

Electronics
    Brushless Motor Controllers


Click photo to enlarge.

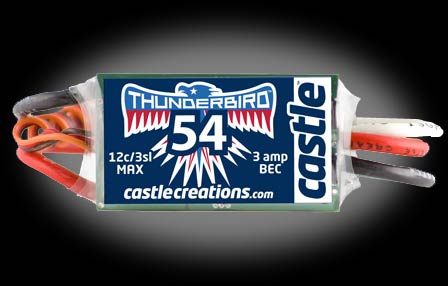

Thunderbird 54 Brushless Speed Controller
Part# 0-CSETB54




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

The Thunderbird-54 offers gobs of power at an unbelieveable price. You simply won't find this much controller for a better price, certainly not in the import bin! This controller is super for great aerobats such as the Multiplex Acromaster or for smaller powered gliders.

Features
Battery Eliminator Circuit (BEC): eliminates receiver battery
Safe "Power On"
Microprocessor Controlled
Tough surface mount construction
Audible Arming Signal
Auto Motor cut-off with reset
Low torque "Soft Start": protects gear boxes and belt drives from shock
Smooth reverse exponential throttle
Self-calibrating endpoints: maximizes usable stick travel
Auto shut-down when signal is lost
Simple setup: no complicated switches

Specs
Forward Yes
Brake Yes
Continuous Max. Current 54A
Input Voltage 15V Max
Length 2.00 in.
Width 1.15 in.
Height 0.40 in.
Weight 1.2 oz.
BEC Voltage 3A Max
