0-CSETB36 Thunderbird 36 Brushless Speed Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All Thunderbird controllers are ready to fly straight from the package, no programming necessary. They are defaulted to AUTO LIPO detect and no brake. Should users wish to modify these settings, they may do so using their transmitter or with Castle's incredible <a href="0-PHXUSB.html" target="_top">Castle Link USB Programming Kit</a>.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Battery Eliminator Circuit (BEC): eliminates receiver battery<br>
Safe "Power On"<br>
Low torque "Soft Start": protects gear boxes and belt drives from shock<br>
Simple setup: no complicated switches or wiring<br>
Tough surface mount construction<br>
Smooth reverse exponential throttle<br>
Audible Arming Signal<br>
Self-calibrating endpoints: maximizes usable stick travel<br>
Auto Motor cut-off with reset<br>
Auto shut-down when signal is lost<br>
Microprocessor Controlled
</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Volts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15 volts<br>
3S LiPo<br>
12 NiCad/NiMH</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">36A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Linear regulator, 3A max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On/Off</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Dimensions</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.5 x 1 x 0.35in. (38.1 x 25.4 x 8.8mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.7 oz. (20g) </font></td>
</tr>
</table>

Thunderbird 36 Brushless Speed Controller
Need some power in your flying wing? Try a Thunderbird-36 for some serious fun!

$42.49
Robot MarketPlace - Thunderbird 36 Brushless Speed Controller

Electronics
    Brushless Motor Controllers

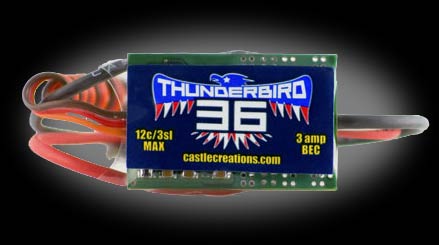

Click photo to enlarge.

Thunderbird 36 Brushless Speed Controller
Part# 0-CSETB36




Please see this product on the new Robot MarketPlace web site. Click here
