0-CSETB18 Thunderbird 18 Brushless Speed Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">All Thunderbird controllers are ready to fly straight from the package, no programming necessary. They are defaulted to AUTO LIPO detect and no brake. Should users wish to modify these settings, they may do so using their transmitter or with Castle&rsquo;s incredible <a href="0-PHXUSB.html" target="_top">Castle Link USB Programming Kit</a>.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Battery Eliminator Circuit (BEC): eliminates receiver battery<br>
Safe &quot;Power On&quot;<br>
Low torque &quot;Soft Start&quot;: protects gear boxes and belt drives from shock<br>
Simple setup: no complicated switches or wiring<br>
Tough surface mount construction<br>
Smooth reverse exponential throttle<br>
Audible Arming Signal<br>
Self-calibrating endpoints: maximizes usable stick travel<br>
Auto Motor cut-off with reset<br>
Auto shut-down when signal is lost<br>
Microprocessor Controlled</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="999999">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Specs</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">18A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Max Volts </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">15V<br>
3S LiPo<br>
12 NiCad/NiMH</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">BEC</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Linear regulator, 3A max </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.32in. (33.7mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.9in. (23.1mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.34in. (8.6mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.6 oz. (17g) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">On/Off</font></td>
</tr>
</table>

Thunderbird 18 Brushless Speed Controller
All Thunderbird controllers are ready to fly straight from the package, no programming necessary.

$33.99
Robot MarketPlace - Thunderbird 18 Brushless Speed Controller
CLOSE X
Loading Image...

Electronics
    Brushless Motor Controllers


Click photo to enlarge.

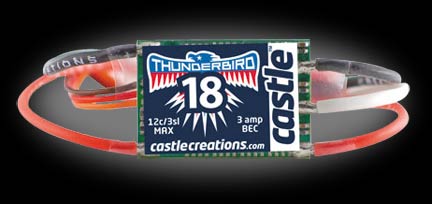

Thunderbird 18 Brushless Speed Controller
Part# 0-CSETB18




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Other Documentation
Reviews & Comments

All Thunderbird controllers are ready to fly straight from the package, no programming necessary. They are defaulted to AUTO LIPO detect and no brake. Should users wish to modify these settings, they may do so using their transmitter or with Castle’s incredible Castle Link USB Programming Kit.

Features
Battery Eliminator Circuit (BEC): eliminates receiver battery
Safe "Power On"
Low torque "Soft Start": protects gear boxes and belt drives from shock
Simple setup: no complicated switches or wiring
Tough surface mount construction
Smooth reverse exponential throttle
Audible Arming Signal
Self-calibrating endpoints: maximizes usable stick travel
Auto Motor cut-off with reset
Auto shut-down when signal is lost
Microprocessor Controlled

Specs
Max Amps 18A
Max Volts 15V
3S LiPo
12 NiCad/NiMH
BEC Linear regulator, 3A max
Length 1.32in. (33.7mm)
Width 0.9in. (23.1mm)
Height 0.34in. (8.6mm)
Weight 0.6 oz. (17g)
Brake On/Off
