0-CSEP7P Pixie-7P Sub-Micro Motor Controller <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Pixie-7P provides modelers flexibility
through the use of user-programmed features. Using an on-board LED and your
throttle stick, you decide the cut-off voltage, motor cut-off, and throttle
range options on this ESC! </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Pixie-7P can be used with Speed-280 and smaller motors where current draw
will be 7 amps or less. It comes with custom-made 24 gauge silicone wire for
battery and motor leads. </font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Pixie-7P can be set up for lower cut-off voltages for 3 or 4 cell NiCad
packs, higher cut-offs for lithium cells or 10-16 cell NiCad packs, or no cut-off
for micro helis. The unit comes pre-programmed for standard 5-10 cell aircraft
operation (4.7V cut-off).</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
-Battery Eliminator Circuit (BEC): eliminates receiver battery<br>
-Safe &quot;Power On&quot;<br>
-Low torque &quot;Soft Start&quot;: protects gear boxes and belt drives from
shock<br>
-Simple setup: no complicated switches or wiring<br>
-Tough surface mount construction<br>
-Smooth reverse exponential throttle<br>
-Audible Arming Signal<br>
-Self-calibrating endpoints: maximizes usable stick travel<br>
-Auto Motor cut-off with reset<br>
-Auto shut-down when signal is lost<br>
-Microprocessor Controlled</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>

<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
with BEC</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">
<p>3-8 </font></div> </td>
</tr>
<tr>
<td> <div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
without BEC</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">3-18</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">7A</font></div></td>
</tr>

<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
Rate</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2800
hz</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.007ohms</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Brake</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Low Voltage Cut-off</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Programmable</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Size</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.28
x 0.58 in.</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight (with wires)</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.11oz</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connector
Type</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Universal</font></div></td>
</tr>
</tbody>
</table>

Pixie-7P Sub-Micro Motor Controller
A new version, the Pixie-7P provides flexibility through the use of user-programmed features.

$26.99
Robot MarketPlace - Pixie-7P Sub-Micro Motor Controller

Electronics
    Small Single-Channel Speed Controllers

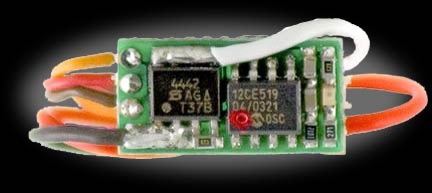

Click photo to enlarge.

Pixie-7P Sub-Micro Motor Controller
Part# 0-CSEP7P



(average customer rating)

Retail: $34.95

Our Price:

$26.99

This Product Has Been Discontinued
Stock Status: Removed
