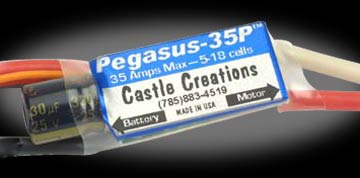

0-CSEP35P Pegasus-35P Sport Motor Control <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">The Pegasus-35P is a rugged surface mount speed control designed for the sport
flyer. The Pegasus-35P can handle ferrite and many cobalt motors. The Pegasus-35P
features a choice of cut-off voltages easily set using your throttle stick.
And, it's smaller and lighter than most Speed-400 controls!</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">With it's user-programmable features, the all new Pegasus-35P can be set up
for either aircraft or helicopter installations. Settings are permanently stored
until you change them!</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>

<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
with BEC</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">
<p>5-10
</font></div> </td>
</tr>
<tr>
<td> <div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
without BEC</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">5-18</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">35A</font></div></td>
</tr>

<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
Rate</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2800
hz</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0015ohms</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Brake</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Low Voltage Cut-off</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Programmable</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Size</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">1.1
x 0.6 in.</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight (with wires)</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.75oz</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connector
Type</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Universal</font></div></td>
</tr>
</tbody>
</table>
