0-CSEP20P Pixie-20P Sub-Micro Motor Control <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Featuring a continuous current rating of 20 amps, the Pixie-20P is remarkably
small and light. Just 0.4&quot; x 0.7&quot; (smaller than most &quot;indoor&quot; controls)
the Pixie-20P is small and light enough to be used in the lightest indoor
models, but has the current capability to handle hot Speed-480 pylon racers.
The Pixie-20P features a full 1.25A BEC for use with up to three servos.
Now with programmable cut-off, the Pixie-20P can be set to get full use of
your pack. Five cut-off choices allow the Pixie to be used with Lithium cells.</font></p>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Features<br>
-Battery Eliminator Circuit (BEC): eliminates receiver battery<br>
-Safe &quot;Power On&quot;<br>
-Low torque &quot;Soft Start&quot;: protects gear boxes and belt drives from
shock<br>
-Simple setup: no complicated switches or wiring<br>
-Tough surface mount construction<br>
-Smooth reverse exponential throttle<br>
-Audible Arming Signal<br>
-Self-calibrating endpoints: maximizes usable stick travel<br>
-Auto Motor cut-off with reset<br>
-Auto shut-down when signal is lost<br>
-Microprocessor Controlled</font></p>
<table width="100%" border="1" cellPadding="0" cellSpacing="0" bordercolor="#999999">
<tbody>

<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
with BEC</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">
<p>5-10
</font></div> </td>
</tr>
<tr>
<td> <div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Cells
without BEC</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">5-18</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Continuous</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">20A</font></div></td>
</tr>

<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Switching
Rate</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">2800
hz</font></div></td>
</tr>
<tr>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></div></td>
<td> <div align="left"> <font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">0.0025ohms</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Brake</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">No</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Low Voltage Cut-off</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Programmable</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Size</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.7
x 0.4 in.</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight (with wires)</font></div></td>
<td><div align="left"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.3oz</font></div></td>
</tr>
<tr>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Connector
Type</font></div></td>
<td><div align="left"><font color="#CCCCCC" size="2" face="Arial, Helvetica, sans-serif">Universal</font></div></td>
</tr>
</tbody>
</table>

Pixie-20P Sub-Micro Motor Control
The Pixie-20P is small and light enough to be used in the lightest indoor models, but has the current capability to handle hot Speed-480 pylon racers.

$33.99
Robot MarketPlace - Pixie-20P Sub-Micro Motor Control

Electronics
    Small Single-Channel Speed Controllers

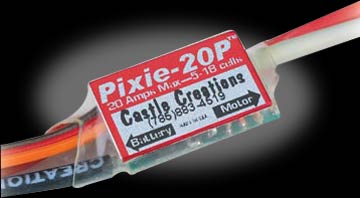

Click photo to enlarge.

Pixie-20P Sub-Micro Motor Control
Part# 0-CSEP20P


No reviews yet.

Retail: $39.95

Our Price:

$33.99

This Product Has Been Discontinued
Stock Status: Removed
