0-CSEM0005 Castle Creations 10-Amp BEC <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Castle Creations' Battery Eliminator Circuit is a little device that eliminates the need for a receiver and servo battery pack. It draws higher voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Peak Current Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">10 Amps </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Current Output </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">@ 12V input - 7 Amps<br>
@ 24V input - 5 Amps</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5.1V out of the package. May be set to 4.8V-9V using the <a href="0-PHXUSB.html">Castle Link</a> </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Input Voltage </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">5V to 25.2V (2S to 6S LiPo) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Length</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.2 in. (30mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Width</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.6 in. (15mm)</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Height</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.4 in. (10mm) </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.4 oz (11 grams)</font></td>
</tr>
</table>
<p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Users are encouraged to replace the connectors if more than 5 amp currents are anticipated.</font></p>

Castle Creations 10-Amp BEC
BEC (Battery Eliminator Circuit) eliminates the need for a receiver and servo battery pack.

$24.99
Robot MarketPlace - Castle Creations 10-Amp BEC
CLOSE X
Loading Image...

Electronics
    Battery Eliminators and Regulators


Click photo to enlarge.

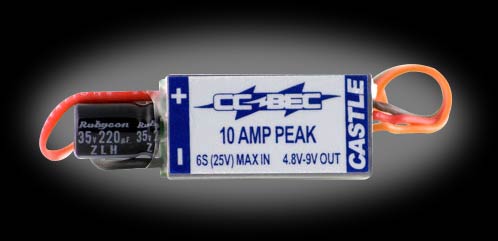

Castle Creations 10-Amp BEC
Part# 0-CSEM0005




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

Castle Creations' Battery Eliminator Circuit is a little device that eliminates the need for a receiver and servo battery pack. It draws higher voltage from the motor batteries and drops it to a voltage level that is suitable for your receiver and servos. This is required in applications which draw high power for multiple servos or use more than 3S motor packs, as most ESCs with linear BECs are not designed for these applications.

Peak Current Output 10 Amps
Continuous Current Output @ 12V input - 7 Amps
@ 24V input - 5 Amps
Output Voltage 5.1V out of the package. May be set to 4.8V-9V using the Castle Link
Input Voltage 5V to 25.2V (2S to 6S LiPo)
Length 1.2 in. (30mm)
Width 0.6 in. (15mm)
Height 0.4 in. (10mm)
Weight 0.4 oz (11 grams)

Ratings are determined with a 5mph airflow on the BEC. Servo connectors are not rated for current in excess of 5 amps. Users are encouraged to replace the connectors if more than 5 amp currents are anticipated.
