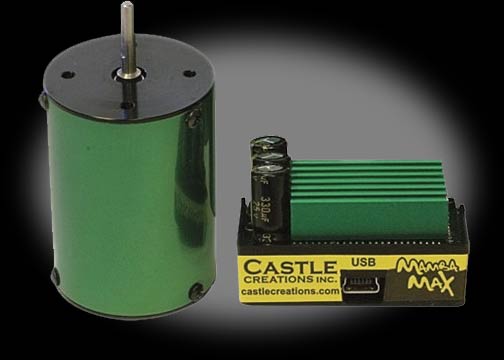

0-CSEC1806 Castle Creations 1/10 Mamba Max + 5700 kV Combo <p><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">From fast on the track, to insane bashing speed runs, the 5700Kv delivers! On 6 cell NiMH or 2S Lipo packs, the 5700Kv motor has been clocked at 40mph in standard 10th scale buggies and trucks with standard gearing. With 3S lipo packs, you can expect 60mph for very large tracks or high speed runs. The 5700Kv motor is roughly equivalent in top speed to a very good 9t or 10t brushed motor on 6 cells.</font></p>
<p><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Features</font><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><br>
Hard-anodized aluminum case<br>
High-quality bearings<br>
Coated rotor<br>
No fan required<br>
Neodymium magnet<br>
Programmable<br>
<font color="cccccc">Motor Features</font><br>
No brush maintenance<br>
Insane speeds easily possible<br>
Easy setup, easy to use<br>
Crazy long run times<br>
High Torque Neodymium Magnet<br>
Oversize lifetime bearings<br>
1/8" hardened steel shaft<br>
Hard annodized case</font></p>
<table width="100%" border="1" cellspacing="0" cellpadding="0">
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">ESC Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.9 x 1.3 x 1.2 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight with Wires </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">2.5 oz. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-12 NiCad; 2-3 LiPos wired in series </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Continuous Amps </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">100A</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Resistance</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.0003 ohm </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Wires</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">13 gauge </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Reversible</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Yes, with lockout </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Low Voltage Cutoff </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Programmable</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Brake</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Proportional</font></td>
</tr>
<tr>
<td colspan="2"><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Motor Specs </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Type</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Sensorless Brushless </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">540</font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Bearing or Bushings </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Oversized bearings </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Cells</font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-8NiCad/NiMH; 2S Lipo </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.4 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Diameter </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1/8 in. </font></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Overall Length </font></td>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.7 in. </font></td>
</tr>
</table>
