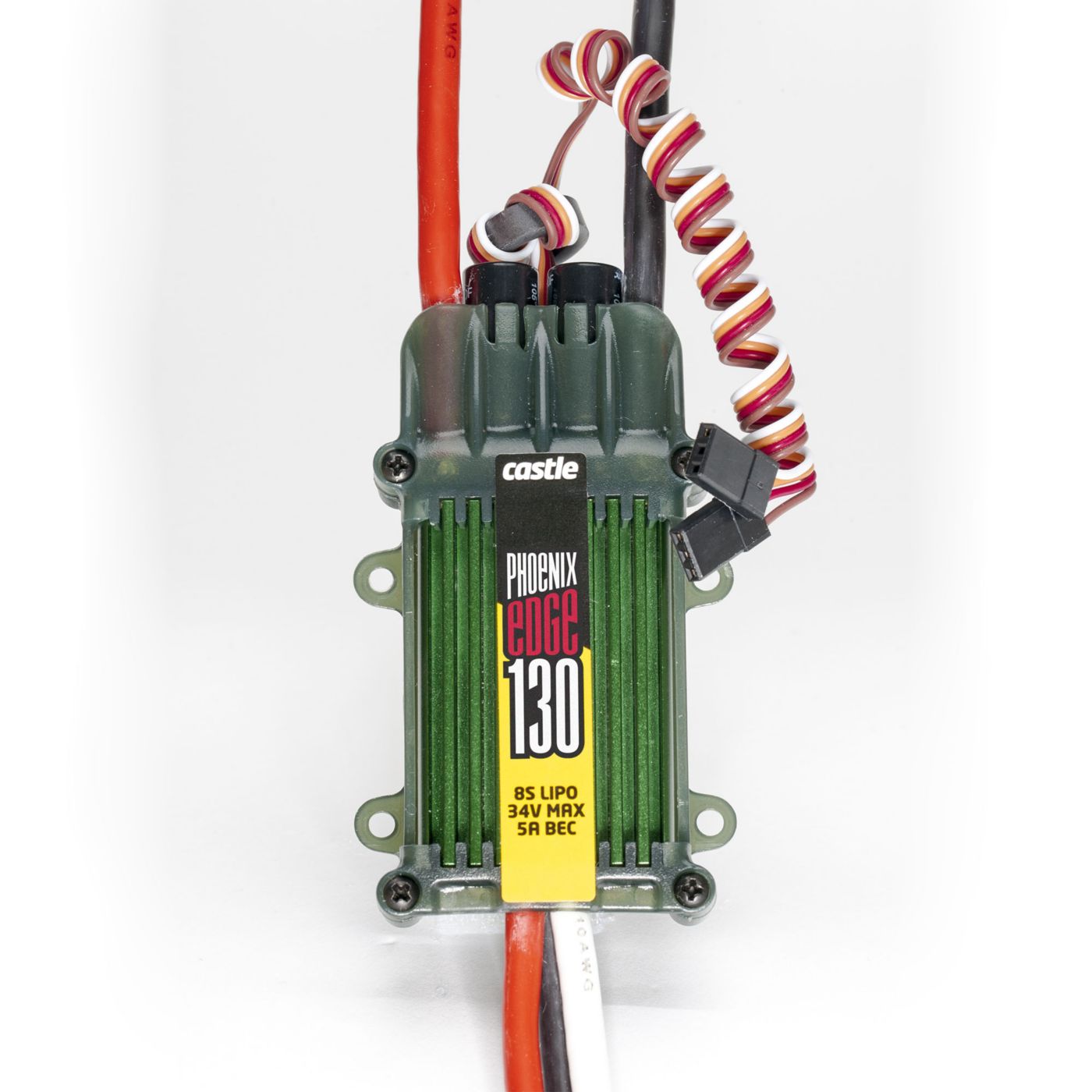

This is the Castle Creations Phoenix Edge 130-Amp 34-Volt Electronic Speed Control with 5-amp BEC. The Phoenix Edge 130 is intended for use in helicopters ranging from 550 to 600 size, and fixed wing aircraft up to 1.20 size. As always, the Edge series of controllers offer industry-leading software functions, data logging, and USB programming capability via Castle Link USB adapter. User programmable white auxiliary wire can be used for governor gain
input adjustments, serve as an audible beacon after a crash, act as
an RPM output for 3 axis gyros that support RPM sensors, and used
as an ESC or receiver arming lock
One year limited warranty through Castle Creations beginning at date
of purchase
INCLUDES: Phoenix Edge 130 Amp 34V ESC with Instruction Sheet
REQUIRES: Battery and motor connectors of modeler's choice
SPECS: Input Voltage: 2S-8S LiPo
Max Continuous Amps at Full Throttle: 130
Dimensions: 2.0 x 3.3 x 0.9" (50.8 x 83.6 x 23.2mm)
Weight: 5.3oz (150.6g) with wires
3.0oz (86.6g) without wires
