0-COPAL50-12 COPAL 50:1 Gearmotor - 12VDC <font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This
little motor takes the Copal line another step further with its all-metal
gears at a ratio of 50 to 1. We've tested this motor extensively,
and were extremely impressed at it's performance.</font><font color="00ff66"></p>
</font><p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">There
are now TWO different versions of this motor- one with a 6V motor,
and one with a 12V motor. Since we know many builders will opt to
overvolt these motors anyway to 12+ volts, we had Copal develop a new
6V version of this motor, just for the Robot MarketPlace! Both motor
models have wire leads soldered onto the back. Check
out the stats below. </font></p>
<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Note
that this motor's gearbox is exposed, so it's best for use in a bot
where it is enclosed. If you need to, you could wrap a layer of thin
CF or foil around the gearbox if you're worried about grit getting
inside.</font></p>
<table width="100%" border="1" cellpadding="0" cellspacing="0" bordercolor="#666666">
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Voltage:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">6-22.8V</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Output Speed:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">330rpm
@ 12V</font><font color="00ff66"><br>
<font size="2" face="Arial, Helvetica, sans-serif">180rpm
@ 6V</font></font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Torque: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">53.35
oz-in (3842 g-cm) @ 12V<br>
32.40 oz-in (2333 g-cm)@ 6V </font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Size:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">1.3&quot; (33mm) long,
5/8&quot; (16mm) diameter</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Weight:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">0.71oz (20.1 g)</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Gear Ratio:</font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Metal
Spur gear 50:1</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall Current: </font></td>
<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Stall at 1.5a</font></div></td>
</tr>
<tr>
<td><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">Shaft Info: </font></td>

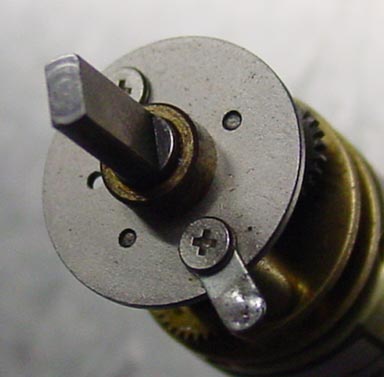

<td><div align="center"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif"><a href="images/store_copal50shaft.jpg">unique
shaft</a>, 4mm round with 2 flats</font></div></td>
</tr>
</table>

COPAL 50:1 Gearmotor - 12VDC
Small, yet quite powerful. Metal gears and a 12V motor.

$34.99
Robot MarketPlace - COPAL 50:1 Gearmotor - 12VDC
CLOSE X
Loading Image...

Motors
    Small Geared Motors

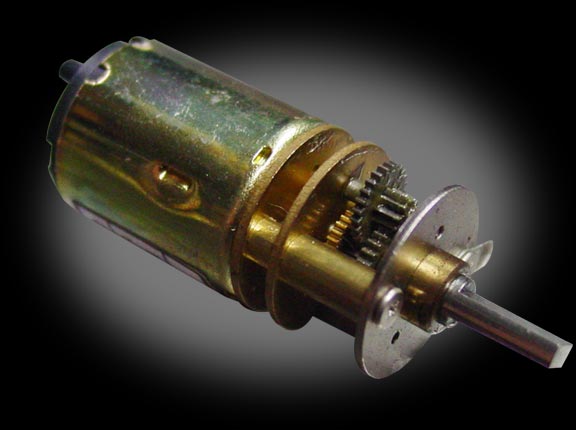

Click photo to enlarge.

COPAL 50:1 Gearmotor - 12VDC
Part# 0-COPAL50-12




Please see this product on the new Robot MarketPlace web site. Click here








General Product Information
Alternate Photos
Other Documentation
Reviews & Comments

This little motor takes the Copal line another step further with its all-metal gears at a ratio of 50 to 1. We've tested this motor extensively, and were extremely impressed at it's performance.

There are now TWO different versions of this motor- one with a 6V motor, and one with a 12V motor. Since we know many builders will opt to overvolt these motors anyway to 12+ volts, we had Copal develop a new 6V version of this motor, just for the Robot MarketPlace! Both motor models have wire leads soldered onto the back. Check out the stats below.

Note that this motor's gearbox is exposed, so it's best for use in a bot where it is enclosed. If you need to, you could wrap a layer of thin CF or foil around the gearbox if you're worried about grit getting inside.

Voltage:
6-22.8V
Output Speed:
330rpm @ 12V
180rpm @ 6V
Stall Torque:
53.35 oz-in (3842 g-cm) @ 12V
32.40 oz-in (2333 g-cm)@ 6V

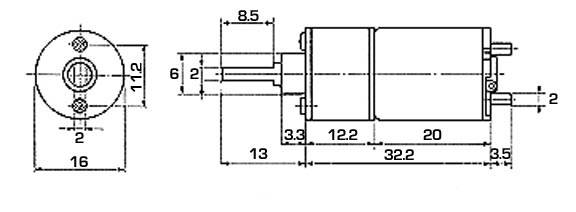

Size:
1.3" (33mm) long, 5/8" (16mm) diameter
Weight:
0.71oz (20.1 g)
Gear Ratio:
Metal Spur gear 50:1
Stall Current:
Stall at 1.5a
Shaft Info:
unique shaft, 4mm round with 2 flats
