0-BP385490-00 DeWalt Shaft Spindle Assembly for 18V Motors <p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">So you've
got the <a href="dewalt_gearboxes.html" target="_top">DeWalt gearboxes </a>,
but you've been pulling your hair out trying to get a shaft to work for them.
You COULD upgrade the 24V transmission with the <a href="DCW-GB01.html" target="_top">Dustin
2 kit</a>, but if you're on a budget and like to try to work out your own
unique solution, we offer these shaft spindle assemblies, made by DeWalt
specifically for the 24V Hammerdrills. A version for the 18V gearboxes is
available as well. </font></p>

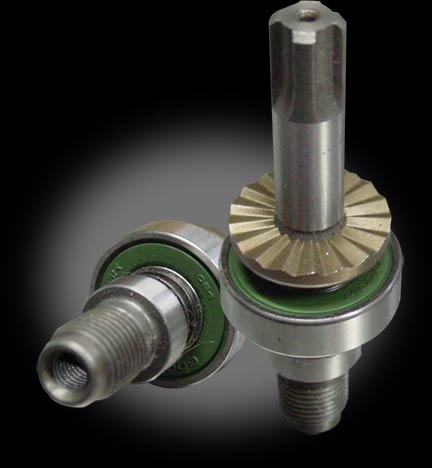

<p align="left"><font color="00ff66" size="2" face="Arial, Helvetica, sans-serif">This unique
shaft spindle has the X-shaped spline on one end that fits directly into
the DeWalt Gearbox, and has a spring-loaded roller bearing already attached,
the opposite end is threaded outside as well as reverse-threaded inside,
providing multiple options for attaching your drive system. You could cut
off the parts you don't need and use just the plain shaft, or come up with
your own custom mounting solution. </font></p>
<p align="left">
<TABLE border=1 align="right" cellPadding=0 cellSpacing=0 bordercolor="#666666">
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">For Gearbox
# </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif"><a href='BP380264-13.html'>18v</a></FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">DeWalt Part
#</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">385490-00</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Output Shape</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">X- Spline</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Length</FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">2.7in.</font></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Shaft Dia. </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">0.5in. threaded output</FONT></TD>
</TR>
<TR>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">Weight </FONT></TD>
<TD><font color="cccccc" size="2" face="Arial, Helvetica, sans-serif">2.12oz</FONT></TD>
</TR>
</TABLE>
